Roof Opening Panel Glass (G1851641): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
-
NOTE:
The procedure must be carried out on both sides.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
-

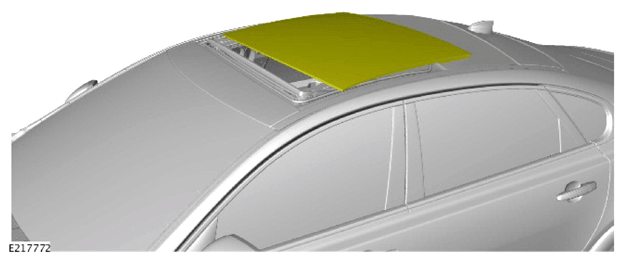

NOTE:

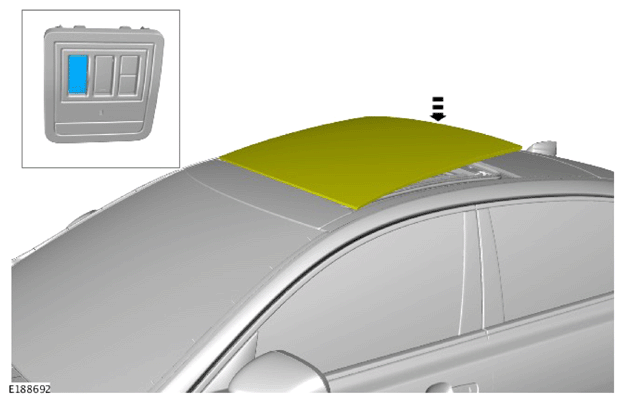

- Position the glass panel as illustrated.

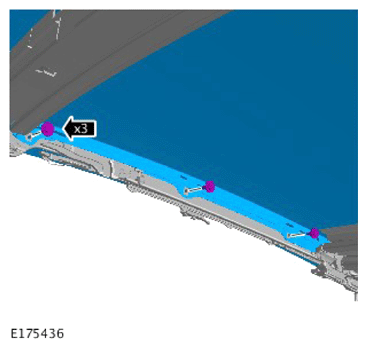

- The 6 retaining bolts are accessible when the glass panel is in the open position.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
-

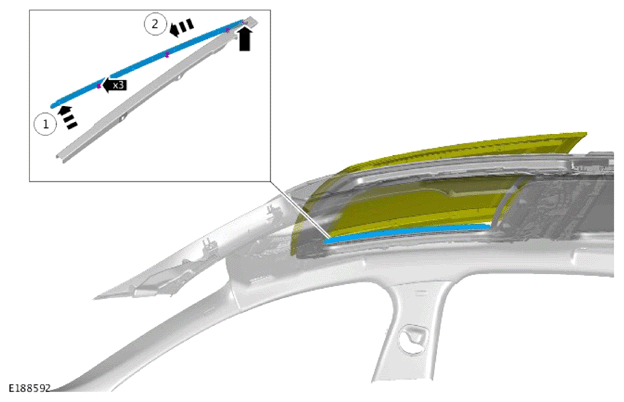

NOTE:
Do this procedure on both sides
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 5.5Nm
-

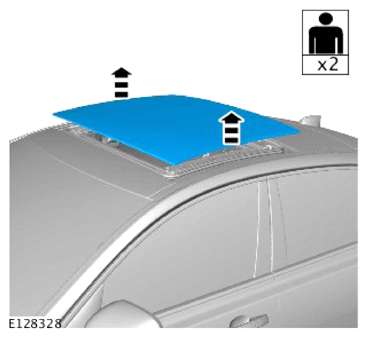

NOTE:
This step requires the aid of another technician.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
