Roof Opening Panel Blind Motor (G1851644): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: HEADLINER

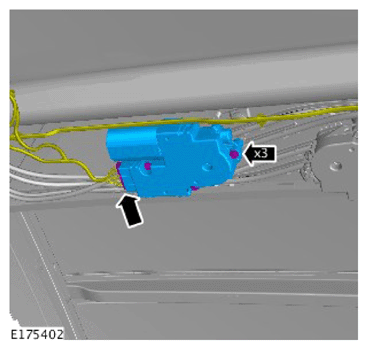

  2. G14011620Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 6Nm
