Roof Opening Panel Blind (G1851643): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the roof opening panel.

    Refer to: ROOF OPENING PANEL GLASS

  2. CAUTION: Take extra care not to damage the component.

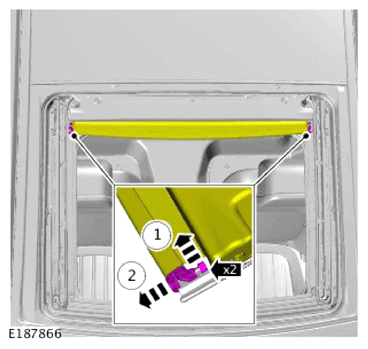

    G14011611Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  3. CAUTION: Protect the surrounding paintwork to avoid damage.

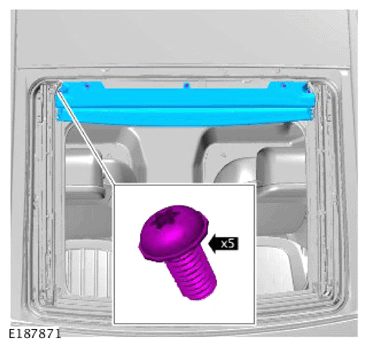

    G14011612Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. CAUTION: If the correct clip is not available, make sure that a suitable hardened pin is used such as a drill bit, do not use a paperclip.

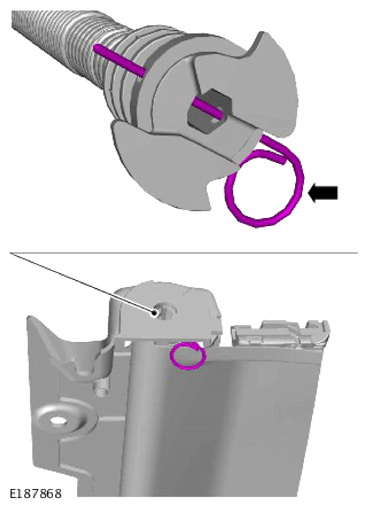

    G14011613Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. NOTE: Note the position of the component prior to removal.

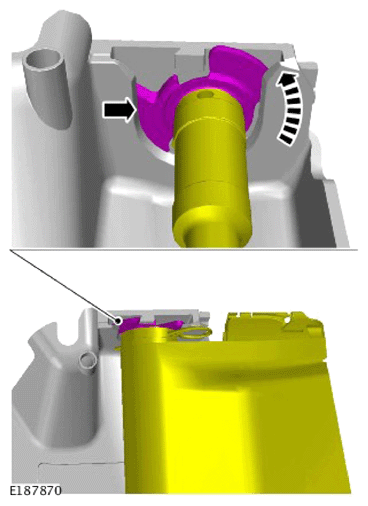

    G14011614Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

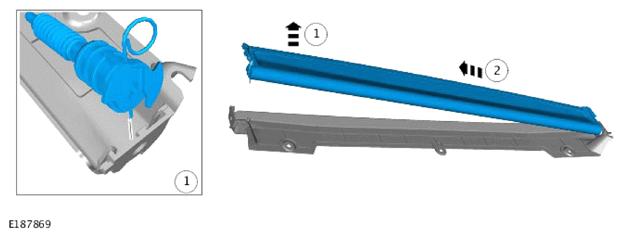

  6. G14011615Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
