Roof Opening Panel Blind (G1851643): Installation
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
-

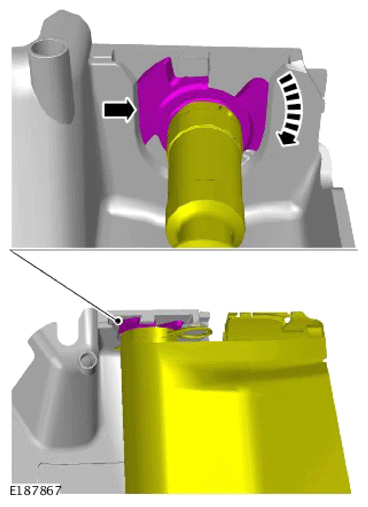

NOTE:
Make sure that the component is installed to the position noted on removal.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
-
NOTE:
This procedure must be completed on both sides.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

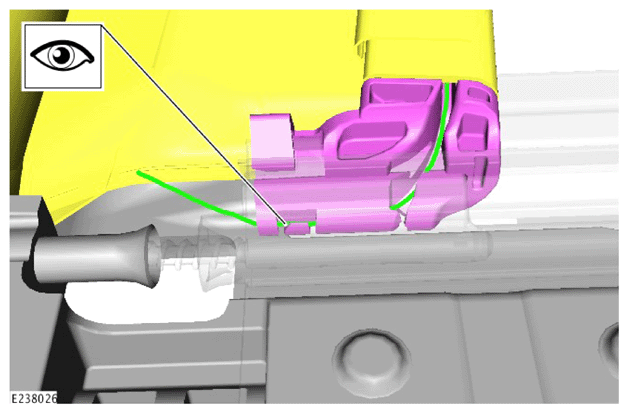

Make sure that the tension cord is correctly routed through the sliding shoes.
- To install, reverse the removal procedure.
