Roof Opening Panel Air Deflector (G2297462): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

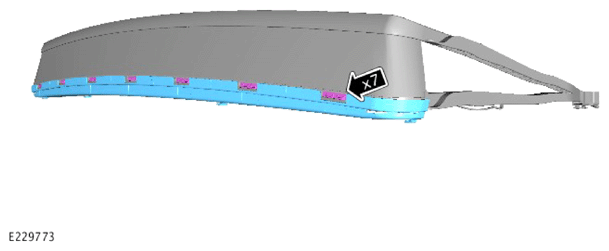

  1. G14011609Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Locate the 7 retaining clips.
    • Install the shield.
  2. Install the air deflector.
  3. Secure the air deflector.

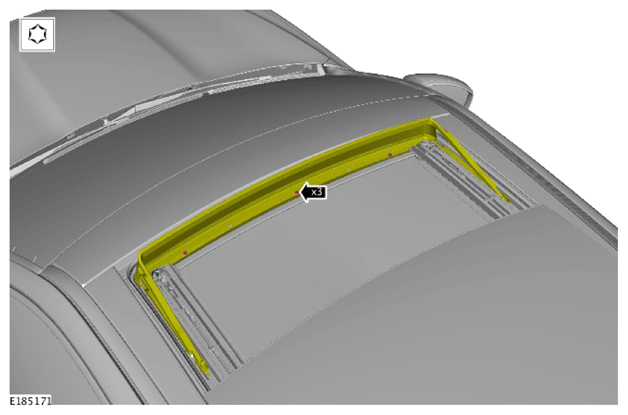

  4. G14011610Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 3 retaining screws.

    Torque  : 3Nm

  5. Close the roof opening panel.
