Glass Fixed Roof - Project 8 (G2263102): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the roof panel frame assembly.
Refer to: ROOF OPENING PANEL FRAME
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

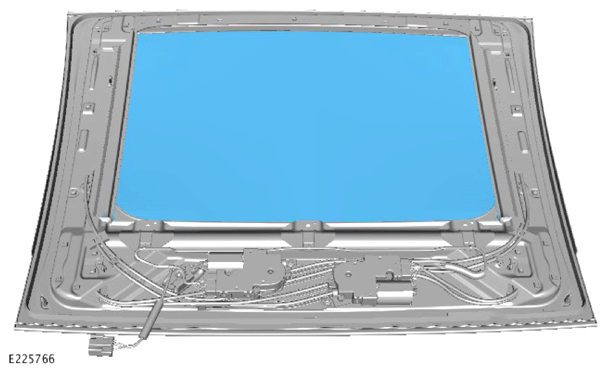

- Suitably support the roof panel assembly.
- Suitably protect the roof panel glass.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

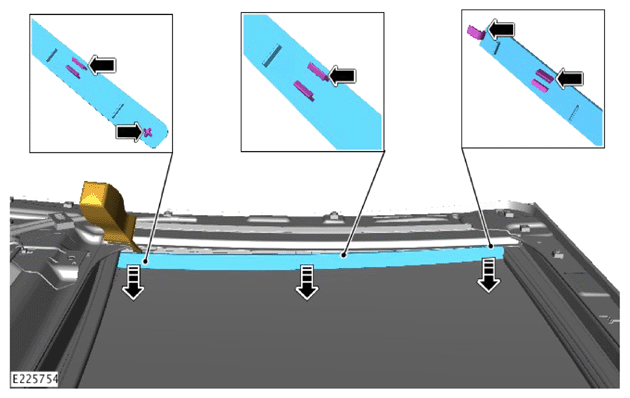

- Using a suitable tool, remove the inner glass roof panel trims.
- Repeat this step for the other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

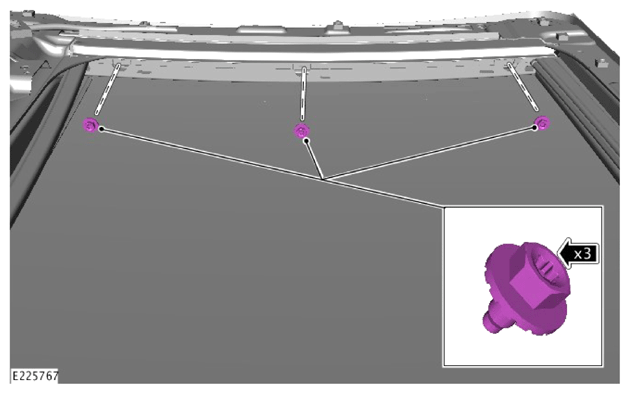

- Remove and discard the 3 bolts.
- Repeat this step for the other side.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

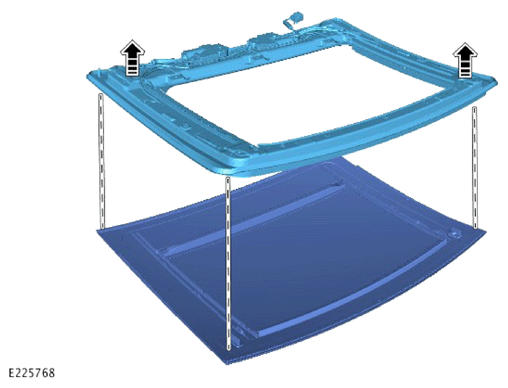

Remove the roof panel frame from the glass.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

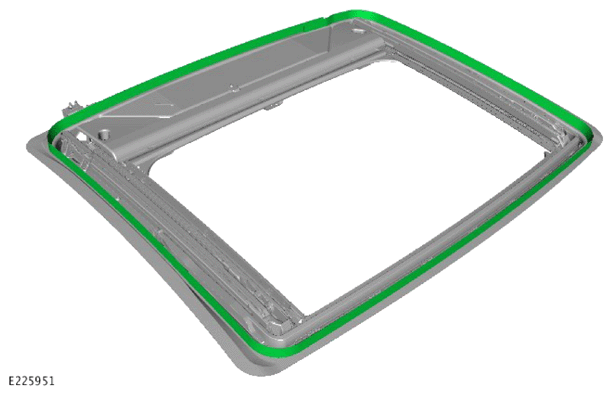

Remove and discard the seal from the roof panel frame.
