Example Of Damage To Roof Glass
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

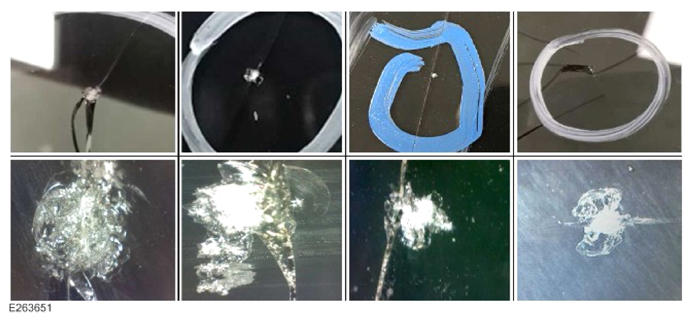

Shown below are examples of cracked/damage roof glass. The top row photos show the original impact points that caused the cracks and other damage to the roof glass.
NOTE:
Not all cracks will necessarily run through the centre of the discernible impact point.
The bottom row shows the magnified images of the impact points.
NOTE:
All of the examples below show damage to the roof glass that has been caused by some foreign objects that have impacted on the glass. Therefore, none of these instances of damage would be suitable for a Warranty claim. Repairs for these kinds of concerns would need to be undertaken as a retail or insurance repair.
