Input/Output Diagram Roof Opening Panel

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = HARDWIRED, O = LIN BUS

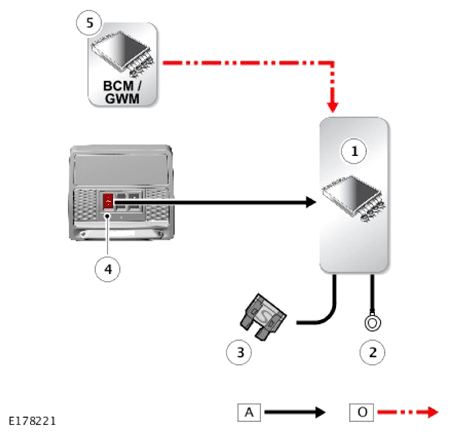

ITEM	DESCRIPTION
1	Roof opening panel motor
2	Ground wire
3	Power supply
4	Roof opening panel motor switch
5	BCM/GWM
