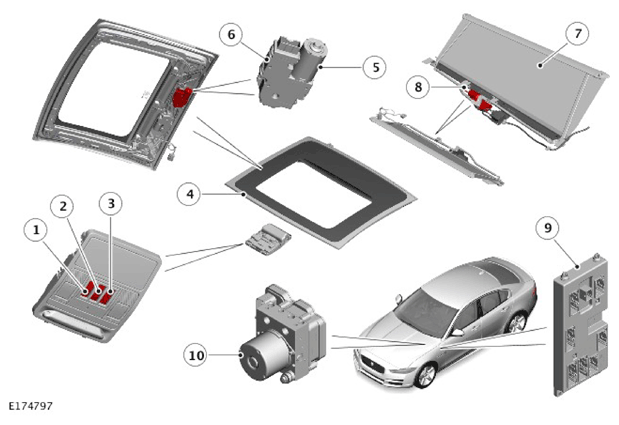

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof opening panel switch |
| 2 | Roof opening panel blind switch |
| 3 | Rear screen blind switch |
| 4 | Roof opening panel |
| 5 | Roof opening panel motor |
| 6 | Roof opening panel control module |
| 7 | Rear window blind |
| 8 | Rear window blind motor assembly |
| 9 | Body Control Module/Gateway Module (BCM/GWM) |
| 10 | Anti-lock Brake System (ABS) module |
