Steering And Wheel Alignment: Notes

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

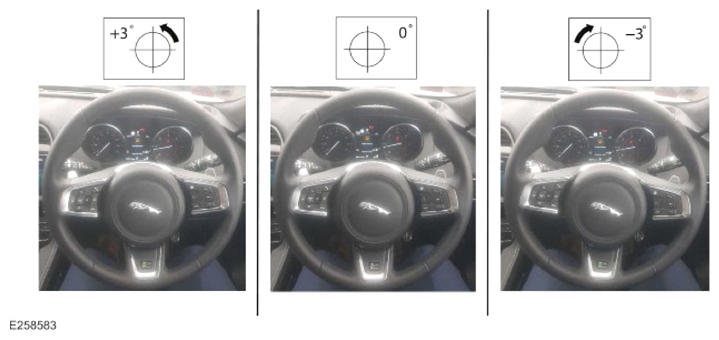

Vehicles with steering wheel angles within +/-3 degrees to the horizontal as shown in illustration E257061 should not be adjusted as they meet Jaguar Land Rover specifications.

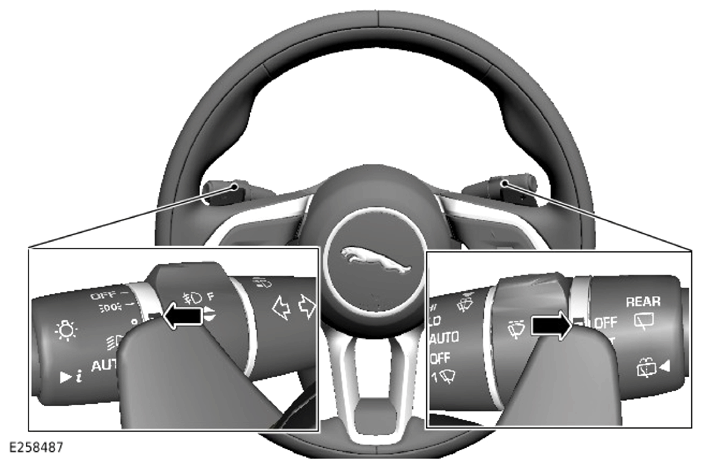

NOTE: Dependent on specification the relationship between the steering wheel control switches/paddle shifts/steering wheel upper spoke profile and the column wiper/indicator stalks should be used for this assessment.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Road Test - Route Design and Consistency

Steering and wheel alignment is dependant on a consistent and repeatable methodology; this is equally important when road testing the vehicle. The same test route must be used every time a road test is completed, using a consistent method for determining if an actual problem exists.

NOTE: When a suitable route has been designed, make sure anyone that is likely to be road testing for steering/wheel alignment issues is aware of the approved test route.

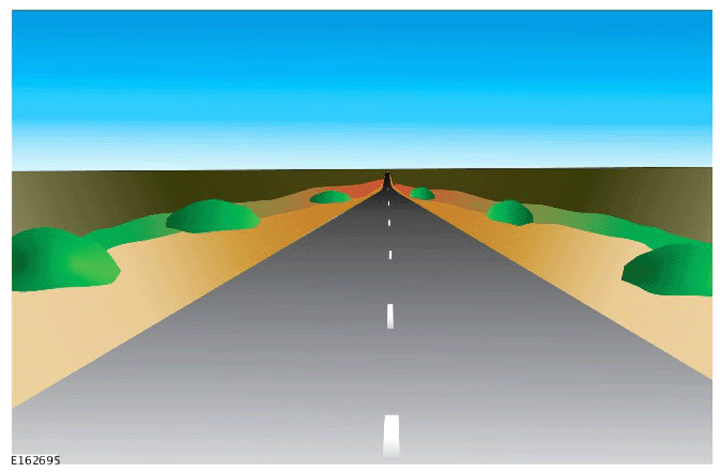

Suitable Roads for Test Route

When road testing for a potential steering and wheel alignment issues, use the same road every time. A suitable test route should have the following features:

Roads with little or no camber for the length of the test section.
Roads which are straight and allow upwards of 40mph (64km/h) speeds.
Roads which are flat and level.
Roads with smooth surfaces.
Roads which are free from excessive traffic.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

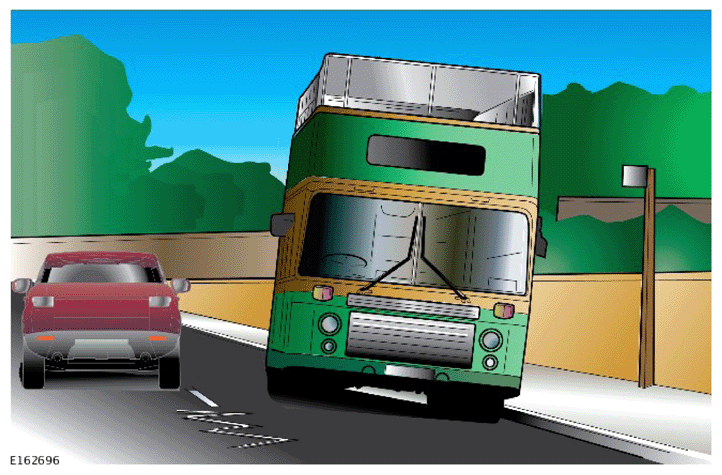

Unsuitable Roads for Test Route

Avoid roads with the following features:

Heavily cambered roads.
Roads with bends or deviations.
Roads with inclines or declines.
Roads with poor surfaces.
Roads which are crowded.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

NOTE: Pinpoint Test A will guide the retailer through correctly diagnosing and rectifying steering wheel misalignment, vehicle pulling and vehicle drifting, when driving in a straight line without the brake applied. The pinpoint test should be completed until the customer symptom is rectified.
