Oil Pan - AWD: Removal
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
- Refer to: DIFFERENTIAL - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL
- Refer to: HALFSHAFT SUPPORT BRACKET
- Refer to: CRANKSHAFT PULLEY

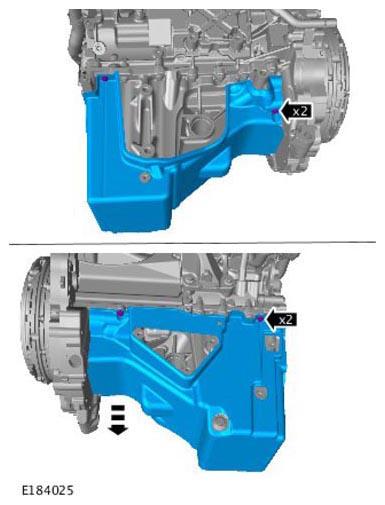

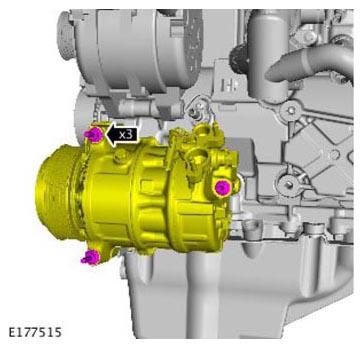

Torque : 25Nm

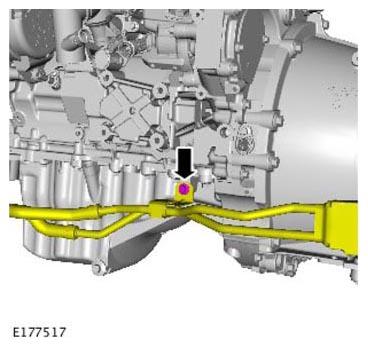

Torque : 25Nm

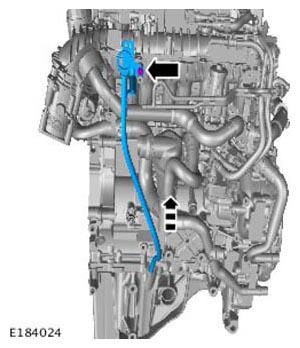

Torque : 12Nm

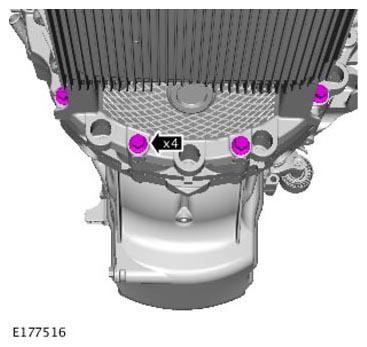

Torque : 7Nm

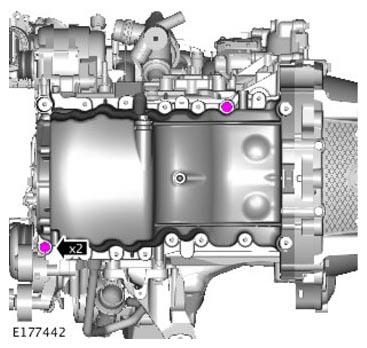

Torque : 12Nm

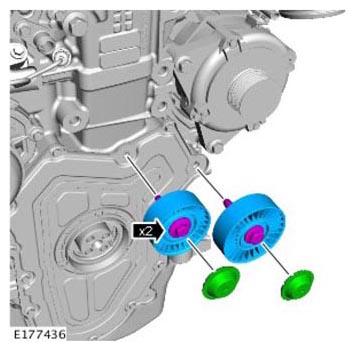

Torque : 48Nm
Torque : 25Nm
-

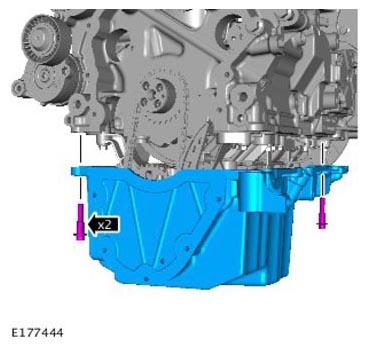

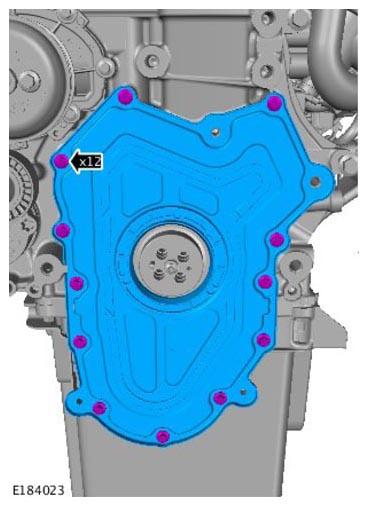

NOTE: Loosen, but do not fully remove the bolts.

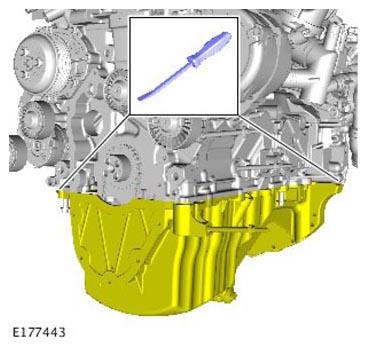

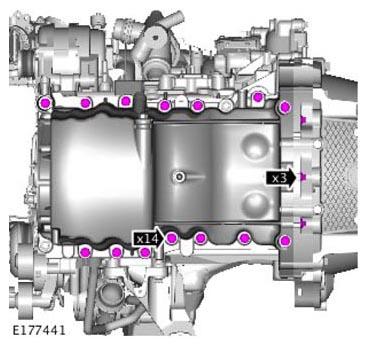

Torque : 25Nm
