Oil Cooler: Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

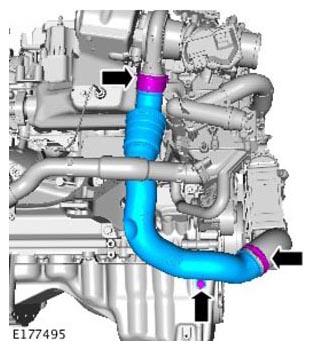

  4. G11309119Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 12Nm

  5. CAUTION: Be prepared to collect escaping coolant.

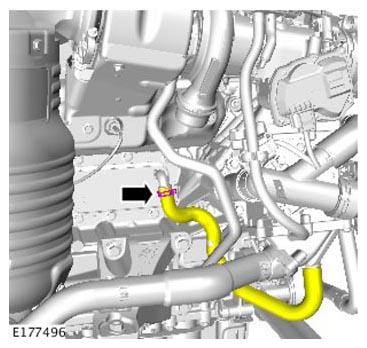

    G11309120Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION:
    • Be prepared to collect escaping fluids.
    • Install a new gasket.

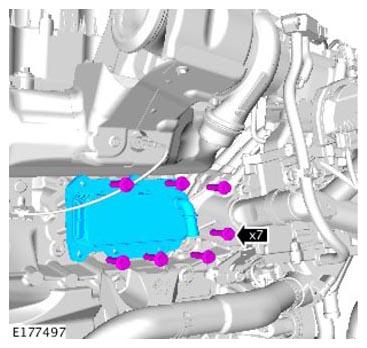

    G11309121Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Oil cooler gasket  Quantity: 1  .

    Torque

    Stage 1: 15Nm

    Stage 2: 25Nm
