Hydraulic Valve Tappet: Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

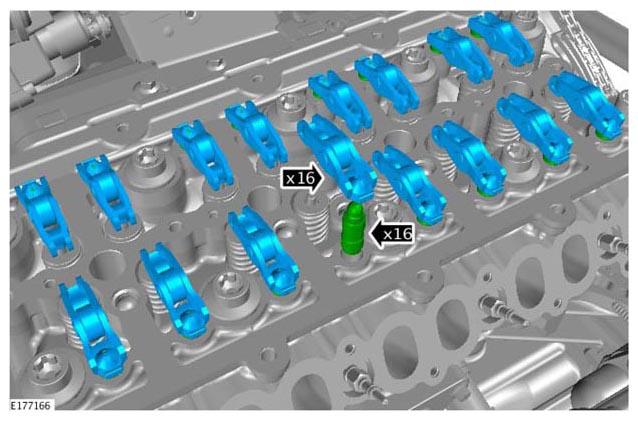

  1. CAUTION:
    • Lubricate hydraulic valve tappets, roller finger cam followers and hydraulic valve tappet bores with engine oil.
    • Install hydraulic valve tappets and roller finger cam followers to the original fitted order.
    • Make sure the retention clip on the roller finger cam follower has engaged and installed correctly to the hydraulic valve tappet.
    • Make sure roller finger cam follower is located correctly on the valve tip between the two guidance arms.
    G11309078Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  2. Refer to: VALVE COVER
