Throttle Body (G1817179): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Tighten the retaining screws evenly and progressively in the sequence shown.
NOTE: Make sure that the throttle body is installed in the correct orientation as noted on the removal step.

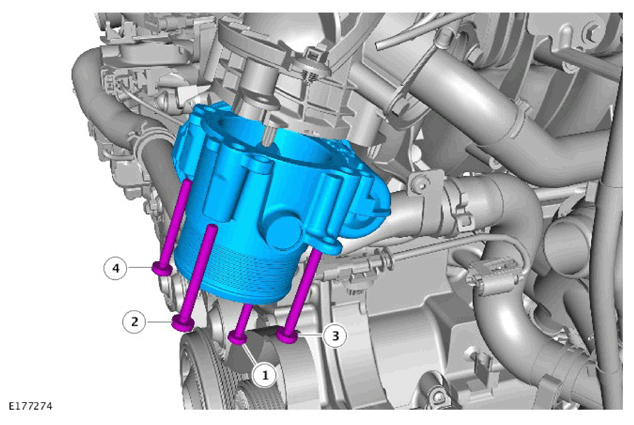

Fig 1: Throttle Body Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Attach the wiring harness and connect the throttle body electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the charge air cooler pipe.

Torque : 3.2Nm
Install the charge air cooler.
Refer to: CHARGE AIR COOLER
If a new component has been installed, configure using Jaguar approved diagnostic equipment.
