Fuel Rail Supply Pipe (G1867922): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- Make sure that the component is clean, free of foreign material and lubricant.

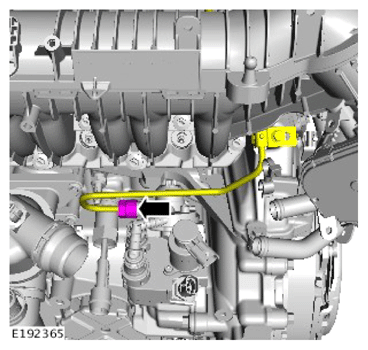

- Install the fuel rail high pressure supply pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Only tighten the union finger-tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Remove and discard the blanking cap.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Only tighten the union finger-tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel pipe to the fuel pump union.

Torque : 15Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel pipe to the fuel pump union.

Torque : 62°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1: 10Nm

Stage 2: 62°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm
CAUTION: Install a new gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: EGR pipe to exhaust manifold gasket Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Remove and discard the blanking cap.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Make sure that a new gasket and O-ring seal is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: EGR pipe to intake manifold O-ring seal Quantity: 1 .

Renew Part: EGR cooler to EGR valve gasket Quantity: 1 .

Torque

M6x20: 7Nm

M6x25: 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11Nm
NOTE: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

F.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the NVH material.
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
CAUTION: Bleed the fuel system by cranking the engine to purge the air from the system.

Bleed the fuel system.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
