Fuel Rail (G1817177): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

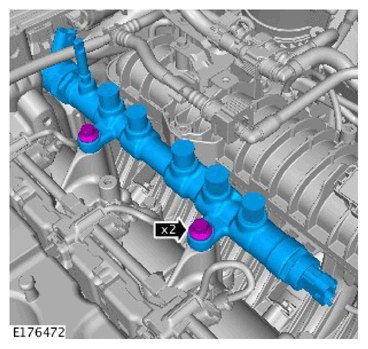

Install the fuel rail and tighten the 2 retaining bolts to the correct torque.

Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

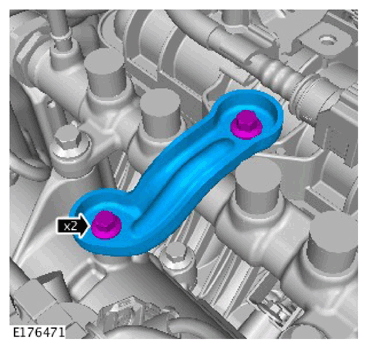

Install the fuel rail bracket and tighten the 2 bolts to the correct torque.

Torque : 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

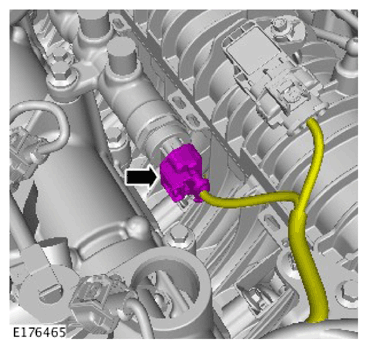

Connect the fuel rail electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure a new fuel supply pipe is installed.

Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel pipe to the fuel pump union.

Torque : 15Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel pipe to the fuel pump union.

Torque : 62°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the fuel line onto the fuel rail and tighten the union to the correct torque.

Torque

Stage 1: 10Nm

Stage 2: 62°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Correctly position the fuel pipe and secure in place with the fuel pipe bracket.

Torque : 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Exhaust Gas Recirculation (EGR) valve and tighten the 3 bolts to the correct torque.

Torque : 9Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure a new gasket is install to the EGR inlet pipe.

Renew Part: EGR inlet pipe to EGR valve gasket Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the EGR inlet pipe and tighten the 2 bolts to the correct torque.

Torque : 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the EGR valve electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the fuel return pipe and connect the fuel rail electrical connector.
CAUTION: Make sure that new components are installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the fuel rail to fuel injector high pressure fuel pipes.

Renew Part: Fuel injector high pressure pipe(s) Quantity: 1 .

Torque

Stage 1: 10Nm

Stage 2: 62°
CAUTION: Make sure that the electrical connectors are installed correctly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 4 fuel injector electrical connectors.
- Gently pull each fuel injector electrical connector to make sure it has been installed correctly.
CAUTION:
- Install a new gasket.
- Install a new O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the EGR pipe and tighten to the correct torque.

Renew Part: Exhaust gas recirculation O-ring seal Quantity: 1 .

Renew Part: Exhaust gas recirculation pipe gasket Quantity: 1 .

Torque

M6x20: 7Nm

M6x25: 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

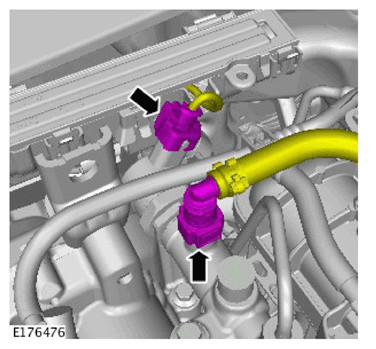

Connect the fuel supply pipes and secure with the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the fuel pipe and secure with the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the 2 fuel pipes and secure in position with the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the oil gauge bracket and tighten to the correct torque.

Torque : 11Nm
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
CAUTION: Bleed the fuel system by cranking the engine to purge the air from the system.

Bleed the fuel system.

Refer to: FUEL SYSTEM BLEEDING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the NVH material.
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
