Injector Leak-Off Pipes
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

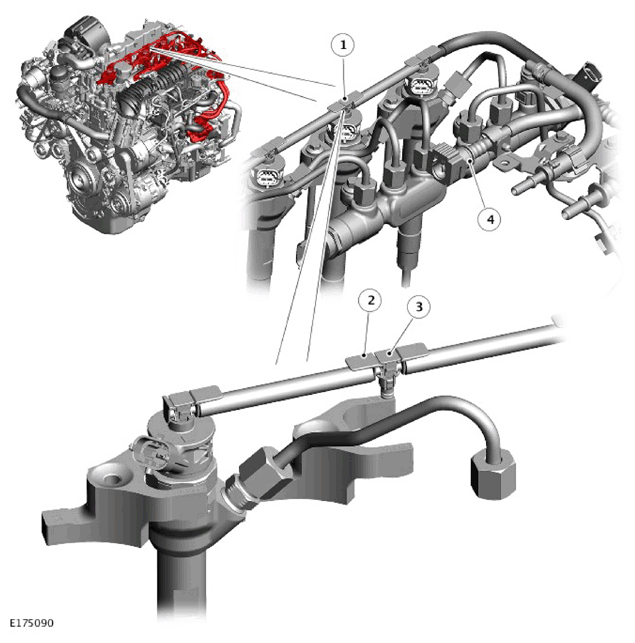

| ITEM | DESCRIPTION |
|---|---|
| 1 | Injector leak-off port connection |
| 2 | Connector fitting/release tab |
| 3 | Connector release/locking clip |
| 4 | Pressure holding valve |
The fuel system leak-off pipes are installed with quick release type couplings, and connect the fuel rail, injectors and High Pressure (HP) fuel pump to the fuel filter.
CAUTION:
The injector leak-off pipe must be correctly removed from the injector or the injector will be damaged.
For additional information, Refer to: FUEL INJECTOR FUEL RETURN LINE
The injector leak-off pipe forms a single component, and is provided as a complete assembly. The injector connector consists of one moving part.
