Component Location
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

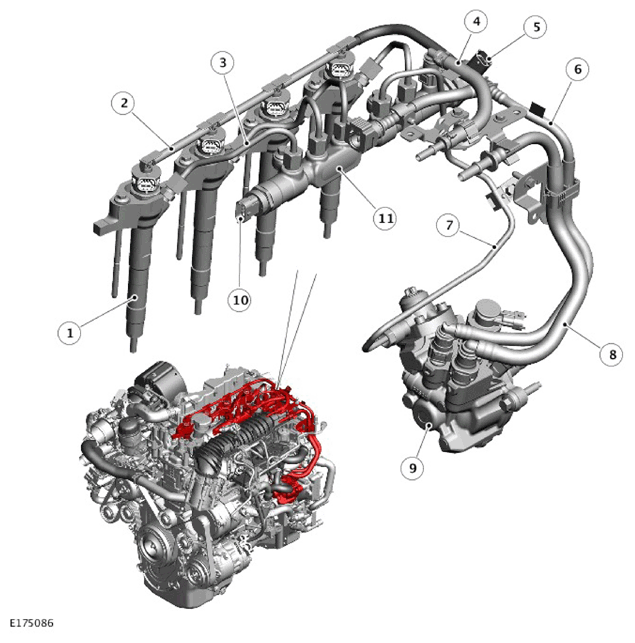

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel injector (4 off) |
| 2 | Low Pressure (LP) pipe - injector leak-off |
| 3 | High Pressure (HP) pipe - fuel rail to fuel injector (4 off) |
| 4 | Low Pressure (LP) pipe - fuel rail leak-off |
| 5 | Fuel Pressure Control Valve (PCV) |
| 6 | Low Pressure (LP) pipe - High Pressure (HP) fuel pump leak-off |
| 7 | High Pressure (HP) - High Pressure (HP) fuel pump to fuel rail |
| 8 | Fuel supply pipe - fuel filter to lift pump |
| 9 | High Pressure (HP) fuel pump and integral lift pump |
| 10 | Fuel Rail Pressure (FRP) sensor |
| 11 | High Pressure (HP) common fuel rail |
