Torque Specifications
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with a green background are a single use component.

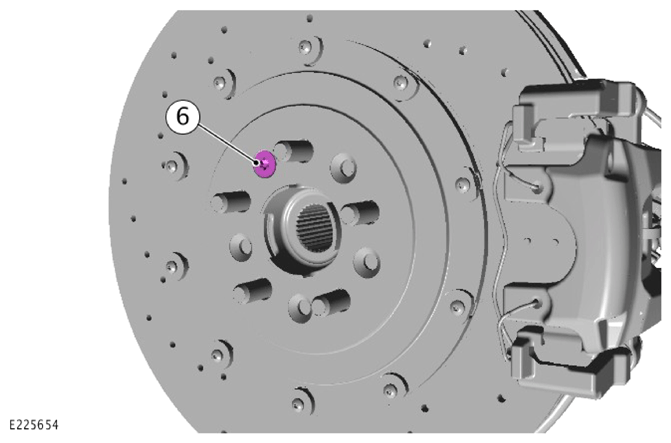

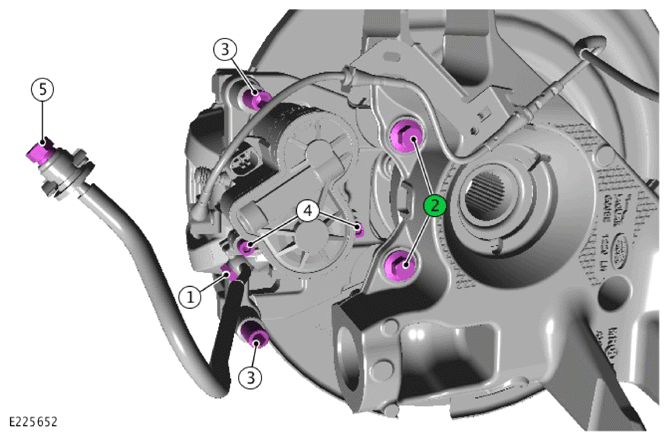

COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 1 | Brake hose to brake caliper banjo bolt | 32 | 23.6 | - |
| 2 | Brake caliper anchor plate bolt | 110 | 81 | - |
| 3 | Brake caliper slide pin bolts | 28 | 20.6 | - |
| 4 | Electric park brake actuator bolt | 8 | 5.9 | - |
| 5 | Brake pipe union | 15 | 11.0 | - |
| 6 | Brake disc retaining bolt | 35 | 25.8 | - |
