Brake Pads - Project 8 (G2248944): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Brake pads must be renewed in axle sets only. Failure to follow this instruction may result in braking efficiency being impaired.
Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

CAUTION:

The brake disc can be easily damaged. Do not strike or lever on the brake disc.
Take care not to contaminate the brake pad friction materials or the brake discs.
Use only new brake fluid of the correct specification from airtight containers.
Do not mix brands of brake fluid as they may not be compatible.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
If new brake pads are installed, the brake pad wear indicator sensor must be replaced.

Connect the Jaguar Land Rover (JLR) approved diagnostic equipment and set the Electric Park Brake (EPB) to the maintenance position.
General Equipment: Jaguar Land Rover approved diagnostic equipment
NOTE: This step is only required if the JLR approved diagnostic equipment is not available.

Set the EPB to the maintenance position.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
NOTE: This step is only required if the vehicle has no electrical power.

Release the EPB.

Refer to: ELECTRIC PARK BRAKE RELEASE WHEN THE VEHICLE HAS NO ELECTRICAL POWER - PROJECT 8
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire assembly.
Refer to: WHEEL AND TIRE - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the EPB actuator electrical connector.
- Disconnect and release the brake pad wear sensor.
- Remove the anti-rattle spring.
CAUTION: Make sure that the brake hose does not support the full weight of the brake caliper assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

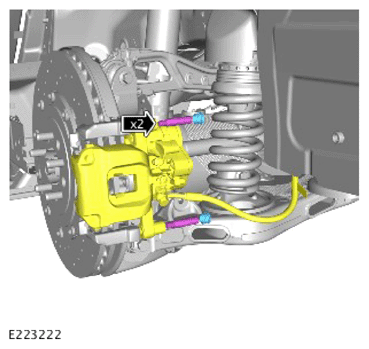

- Remove the dust caps.
- Undo the 2 brake caliper slide pins.
- Using a suitable tie strap, tie the caliper aside.

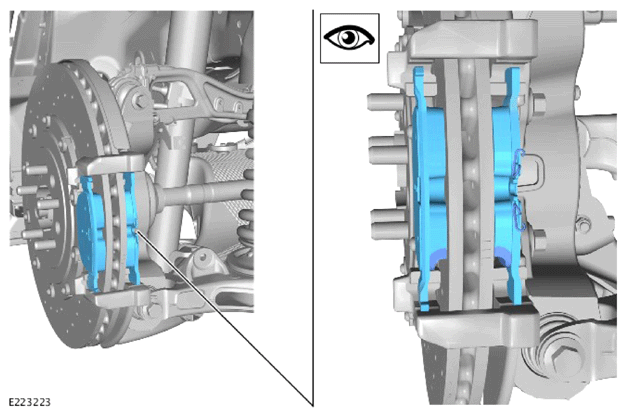

CAUTION: Note the correct orientation of the brake pads prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the anti-rattle spring from the inboard brake pad.
- Remove the brake pads.
NOTE: Only do this step if new brake pads are to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

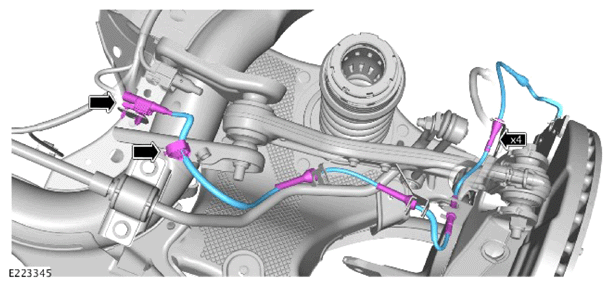

Release the 4 grommets.
Release the wiring harness from the clip.
Disconnect the electrical connector.
Remove and discard the brake pad wear sensor.
