Brake Pads - Project 8 (G2248944): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. G13903151Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Clean the brake caliper carrier using brake cleaning fluid.

  2. WARNING: If the brake caliper piston seal is damaged a new brake caliper must be installed.
    G13996567Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Inspect the caliper piston and slide pin seals for damage.

  3. CAUTION: Do not allow dirt or foreign liquids to enter the reservoir.
    NOTE: Only do this step if new brake pads are to be installed.

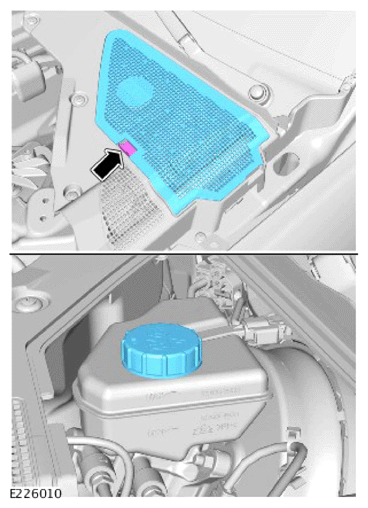

    G13903081Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the cowl panel access cover.
    • Remove the cap from the brake fluid reservoir.
  4. CAUTION: As the piston is pushed back into the caliper housing, the brake fluid level in the reservoir will rise. Do not allow the reservoir to overflow.
    NOTE: Only do this step if new brake pads are to be installed.
    G13903154Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a piston retraction tool, fully retract the brake caliper piston.

    Special Tool(s): 206-080

  5. CAUTION:
    • Make sure that the brake pads are installed in the correct orientation.
    • Make sure that the brake pads chamfer edges are aligned as shown.
    G13996603Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the brake pads as shown.
    • Install the anti-rattle spring to the inboard brake pad.
  6. G13996602Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the brake caliper.
    • Tighten the 2 brake caliper slide pins.

      Torque  : 28Nm

    • Install the 2 dust caps.
  7. NOTE: Only do this step if the component was previously removed.
    G13996604Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the brake pad wear sensor.

      Renew Part: Brake pad wear sensor cable  Quantity: 1.

    • Connect and secure the electrical connector.
    • Secure the wiring harness to the clips.
    • Secure the 4 grommets.
  8. G13996561Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the anti-rattle spring.
    • Connect the brake pad wear sensor to the brake pad.
    • Secure the grommet.
    • Connect the Electric Park Brake (EPB) actuator electrical connector.

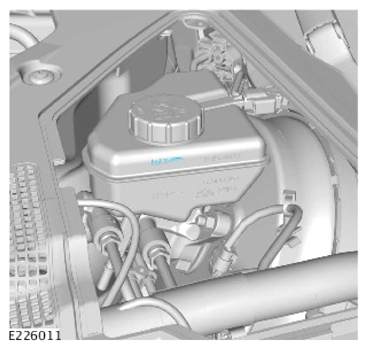

  9. G13903089Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Depress the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up to the MAX mark with brake fluid, if necessary.

  10. G13903081Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the cap to the brake fluid reservoir.
    • Install the cowl panel access cover.
  11. Install the wheel and tire assembly.

    Refer to: WHEEL AND TIRE - PROJECT 8

  12. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  13. Connect the Jaguar Land Rover (JLR) approved diagnostic equipment and configure the EPB.

    General Equipment: Jaguar Land Rover approved diagnostic equipment
