Brake Disc - Project 8 (G2248943): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

If installing a new brake disc, install new brake pads.
Brake discs must be renewed in pairs.
Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

CAUTION:

The brake disc can be easily damaged. Do not strike or lever on the brake disc.
Take care not to contaminate the brake pad friction materials or the brake discs.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Connect the Jaguar Land Rover (JLR) approved diagnostic equipment and set the Electric Park Brake (EPB) to the maintenance position.
General Equipment: Jaguar Land Rover approved diagnostic equipment
NOTE: This step is only required if the JLR approved diagnostic equipment is not available.

Set the EPB to the maintenance position.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
NOTE: This step is only required if the vehicle has no electrical power.

Release the EPB.

Refer to: ELECTRIC PARK BRAKE RELEASE WHEN THE VEHICLE HAS NO ELECTRICAL POWER - PROJECT 8
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire assembly.
Refer to: WHEEL AND TIRE - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

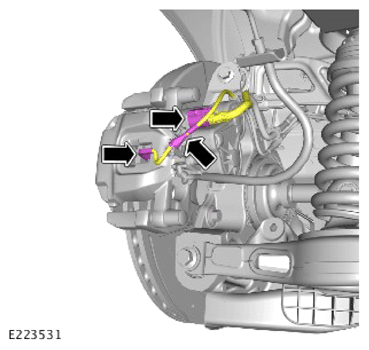

- Disconnect and release the brake pad wear sensor.
- Disconnect the EPB actuator electrical connector.
CAUTION: Make sure that the brake hose does not support the full weight of the brake caliper assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

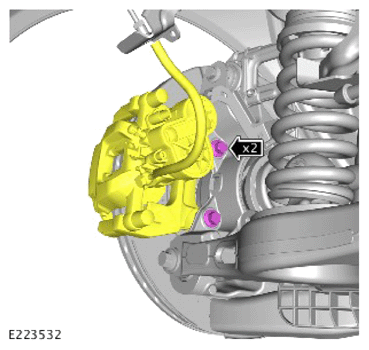

- Remove and discard the 2 bolts.
- Using a suitable tie strap, tie the caliper aside.
CAUTION: The brake disc can be easily damaged. Do not drop the brake disc.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

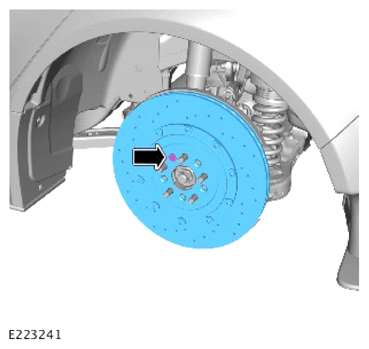

Remove the screw.
Remove the brake disc.
Clean and inspect the brake disc.

Refer to: CARBON CERAMIC BRAKE DISC CLEANING AND INSPECTION - PROJECT 8
