Brake Disc - Project 8 (G2248943): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Damaged brake disc shields must be replaced.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

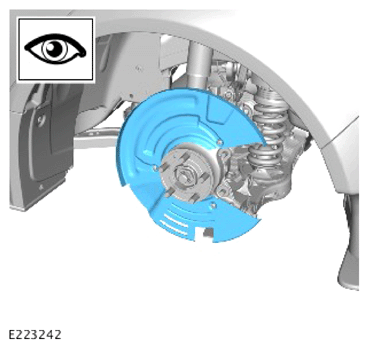

Clean and inspect the brake disc shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the brake disc.
- Install and tighten the screw.
Torque : 35Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the brake caliper.
- Install and tighten the 2 new bolts.
Renew Part: Brake caliper carrier bolt(s) Quantity: 2.

Torque : 110Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the brake pad wear sensor to the brake pad.
- Secure the grommet.
- Connect the EPB actuator electrical connector.
Install the wheel and tire assembly.
Refer to: WHEEL AND TIRE - PROJECT 8
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Connect the Jaguar Land Rover (JLR) approved diagnostic equipment and configure the EPB.
General Equipment: Jaguar Land Rover approved diagnostic equipment
