Brake Caliper - Project 8 (G2248942): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
- Only do this step if the component was previously removed.
- Make sure that a new O-ring seal is installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new O-ring seal.
  Renew Part: Electric park brake actuator fitting kit Quantity: 1.
- Install the Electric Park Brake (EPB) actuator.
- Install and tighten the 2 new bolts.
Torque : 8Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

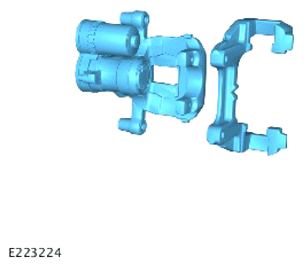

Clean the brake caliper anchor plate using brake cleaning fluid.
CAUTION: Damaged components must be replaced.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

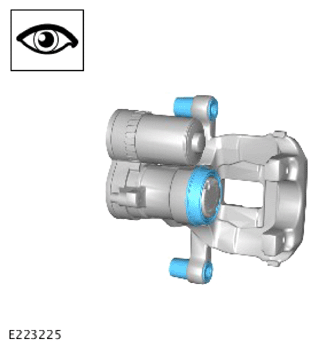

Inspect the brake caliper piston and slide pin seals for damage.
NOTE: Make sure the brake hose is installed in the correct orientation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the brake hose to the body bracket.
  Renew Part: Brake hose Quantity: 1.
- Install the clip.
- Connect and tighten the brake pipe union.
Torque : 15Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the brake caliper.
- Install and tighten the 2 brake caliper slide pins.
  Torque : 28Nm
- Install the 2 dust caps.
- Connect the brake hose to the caliper and tighten the banjo bolt.
Torque : 30Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the anti-rattle spring.
- Connect the brake pad wear sensor to the brake pad.
- Secure the grommet.
- Connect the EPB actuator electrical connector.
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Connect the Jaguar Land Rover (JLR) approved diagnostic equipment and configure the EPB.
General Equipment: Jaguar Land Rover approved diagnostic equipment
Bleed the brake system.
Refer to: BRAKE SYSTEM BLEEDING
Install the wheel and tire assembly.
Refer to: WHEEL AND TIRE - PROJECT 8
