Torque Specifications
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with a green background are a single use component.
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

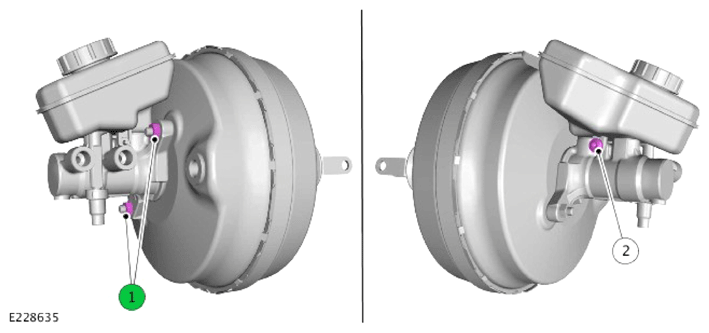

| 1 | Brake master cylinder retaining nuts | 25 | 18 | - |
| 2 | Brake fluid reservoir bolt | 4 | - | 35 |

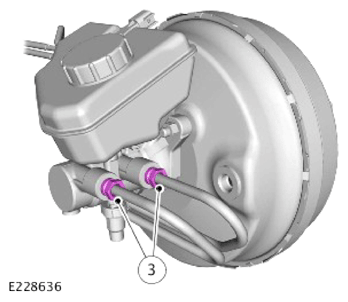

| 3 | Brake master cylinder pipe line union | 17 | 13 | - |

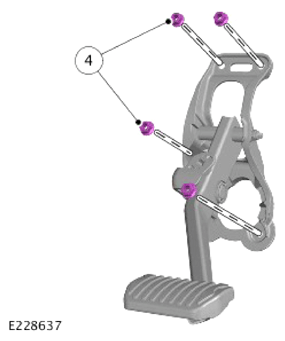

| 4 | Brake pedal bracket retaining nuts | 25 | 18 | - |
