Brake Pedal And Bracket - Vehicles With: Automatic Transmission (G1851889): Notes

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

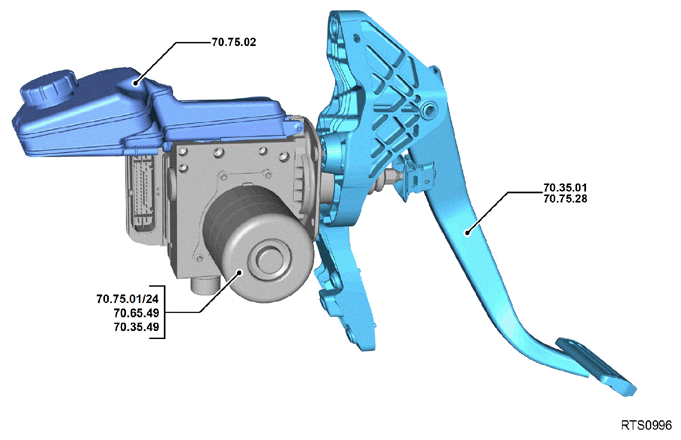

70.35.01 BRAKE PEDAL - RENEW ALL DERIVATIVES 0.20
G13903189Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

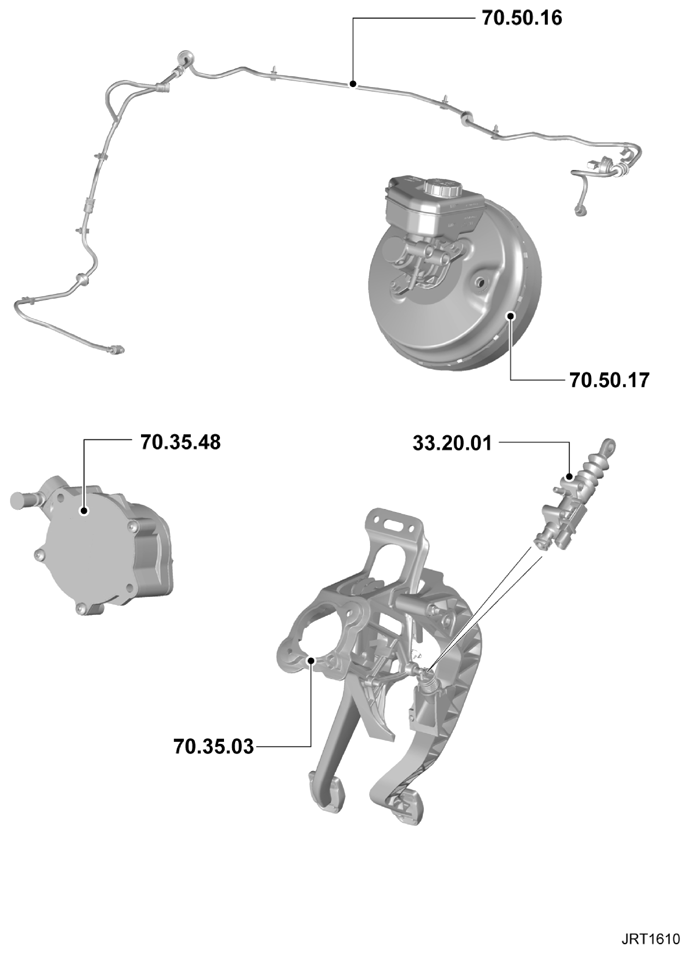

70.35.03 PEDAL BOX - RENEW AUTOMATIC TRANSMISSION 0.40
G13903190Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
