Steering Column (G1817736): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • To prevent accidental deployment, you must power down the Restraints Control Module (RCM). Wait at least 2 minutes after you disconnect the startup battery ground cable before you do any work on the Supplementary Restraint System (SRS). If you do not follow these instructions, it can cause injury or death.
  • Do not connect any electrical test device or equipment to the Supplementary Restraint System (SRS) connectors.
  • Always wear safety glasses when working on an airbag equipped vehicle and when handling an airbag. Failure to follow this instruction may result in personal injury.
CAUTION: Make sure that the road wheels are in the straight ahead position.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
  • Removal steps in this procedure may contain installation details.
  1. Make sure the steering column is in the fully extended position to allow access to the steering column fixings.
  2. Make sure that the steering column lock actuator is not engaged and in the service position. Failure to follow this instruction will make installation of the steering system impossible and may result in damage to the vehicle.

    Refer to: STEERING COLUMN SERVICE POSITION

  3. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  4. Make the Supplemental Restraint System (SRS) safe.

    Refer to: STANDARD WORKSHOP PRACTICES

  5. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  6. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD - PROJECT 8

  7. CAUTION:
    • Do not turn the steering wheel with the steering column lower shaft disconnected as damage to the clockspring may occur.
    • Care must be taken to avoid damaging the aluminum.
    NOTE: Note the steering column lower shaft to steering gear alignment marks.

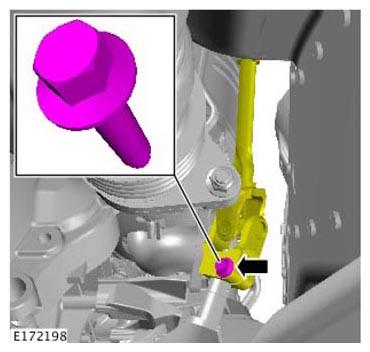

    G11308804Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the bolt.
    • Release the steering column lower shaft from the steering gear.
  8. Remove the instrument panel lower trim panel.

    Refer to the appropriate service information

  9. Remove the steering wheel.

    Refer to: STEERING WHEEL

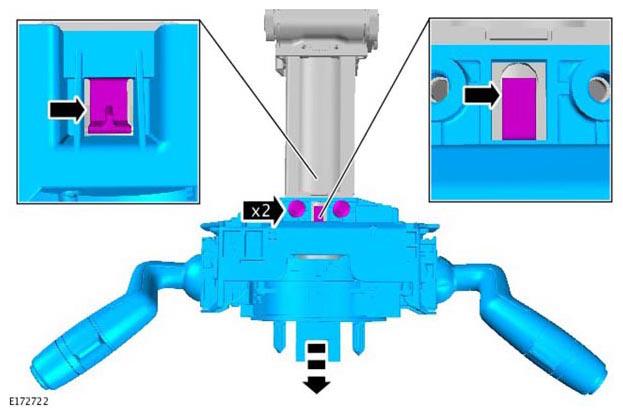

  10. G11308809Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the clockspring and multifunction switch assembly.

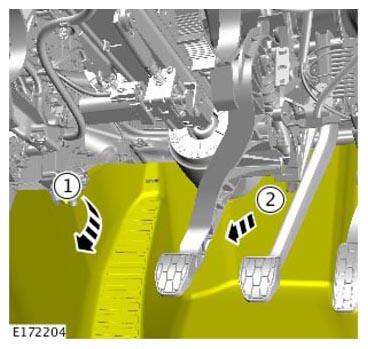

  11. G11308815Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the carpet.

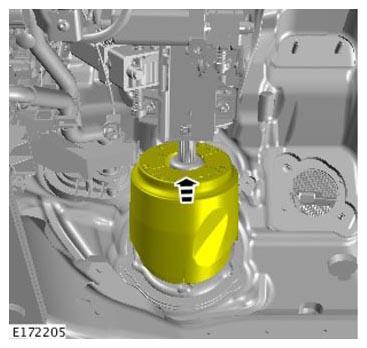

  12. G11308816Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the Noise, Vibration and Harness (NVH) material.

  13. NOTE: Note the position of the locking ring.

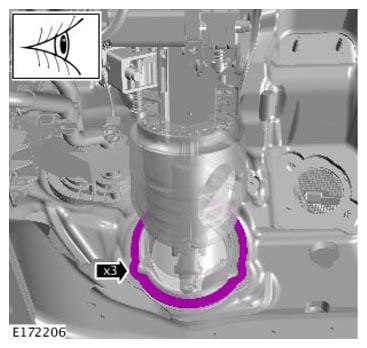

    G11308817Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the steering column boot retaining clip.

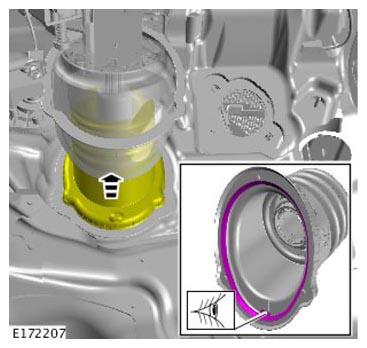

  14. CAUTION: Note the position of the seal.
    G11308818Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the steering column boot.

  15. NOTE: Vehicles with electric adjusting steering column.

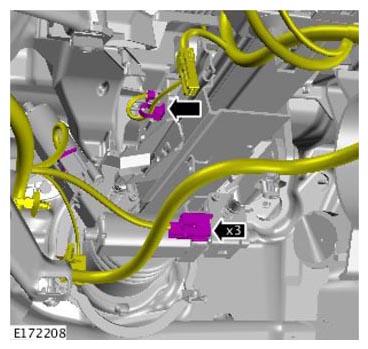

    G11308819Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the wiring harness clip.
    • Disconnect the 3 electrical connectors.
  16. NOTE: Vehicles with manual adjusting steering column.

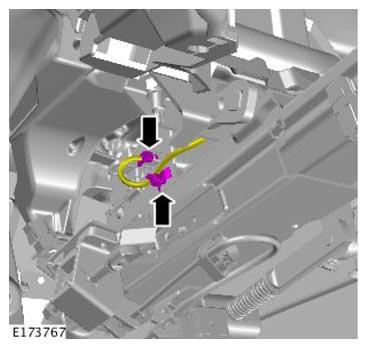

    G11308820Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the wiring harness clip.
    • Disconnect the electrical connector.

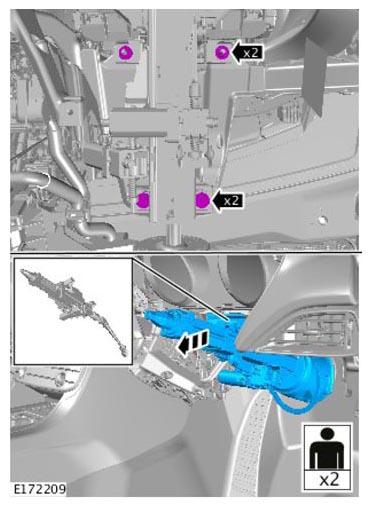

  17. G11308822Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the steering column.

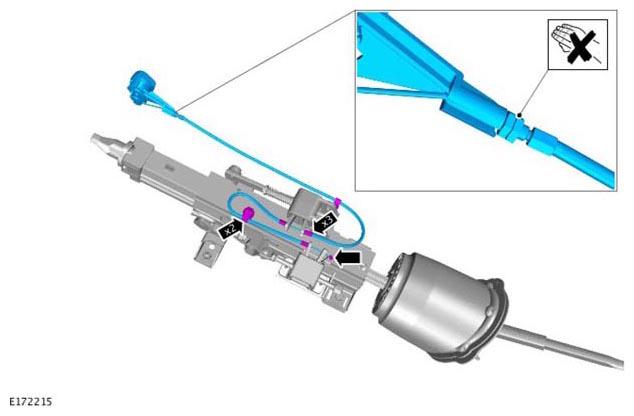

  18. CAUTION: Do not adjust the interlocked nuts as they are preset.
    NOTE:
    • Only do the following step(s) if a new component is to be installed.
    • Vehicles with manual adjusting steering column.
    • Note the fitted position of the steering column adjustment cable.
    G11308821Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the steering column adjustment cable.

  19. CAUTION: Note the fitted position the special washers.
    G11308823Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 special washers.

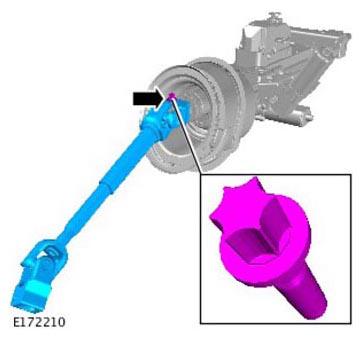

  20. G11308824Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the bolt.
    • Remove the lower steering column shaft.

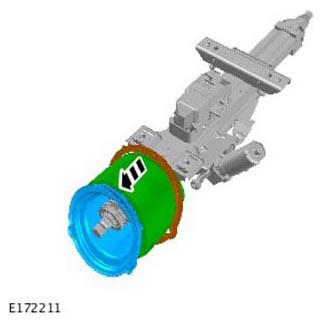

  21. G11308825Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the steering column boot and NVH material.

  22. NOTE: Vehicles with manual adjusting steering column.
    G13903429Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use a suitable tool to remove and discard the 2 security bolts.

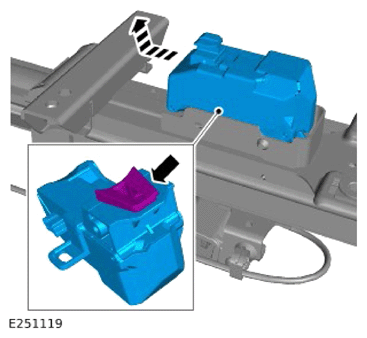

  23. NOTE: Vehicles with manual adjusting steering column.
    G13903430Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the Electric Steering Column Lock (ESCL).
