Steering Column (G1817736): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE:
    • Vehicles with manual adjusting steering column.
    • Only do the following step(s) if the component was previously removed.

    Install the Electric Steering Column Lock (ESCL).

  2. NOTE: Vehicles with manual adjusting steering column.

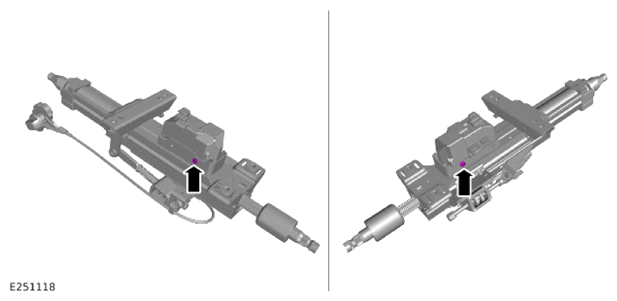

    G13903429Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 new security bolts until the hexagon shears.

    Renew Part: Security bolts Quantity: 2  .

  3. Install the steering column boot and Noise, Vibration and Harness (NVH) material.
  4. CAUTION: Care must be taken to avoid damaging the aluminium.
    NOTE: Make sure to clean the threads prior to installation.

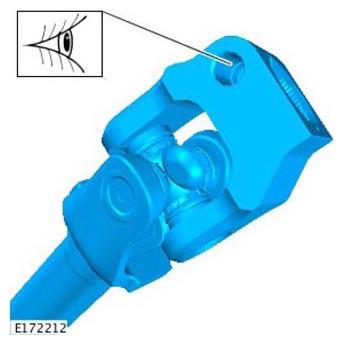

    G11308826Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Inspect the both lower steering column shaft joints. Replace if damaged or worn.

  5. CAUTION:
    • Make sure that a new steering shaft connection bolt is installed.
    • Fixings must be started by hand to avoid damaging threads.
    • The fixing must be fully tightened immediately following installation. Do not leave the fixing partially installed as adhesive may be activated.

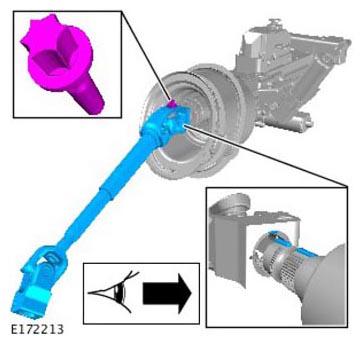

    G11308827Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the lower steering column shaft.
    • Install and tighten the new bolt.

      Renew Part: Steering column lower shaft upper bolt Quantity: 1  .

      Torque  : 22Nm

  6. CAUTION: Make sure that the steering column adjustment cable is correctly installed.
    NOTE: Vehicles with manual adjusting steering column.

    Install the steering column adjustment cable. Check for correct operation of the steering column adjustment cable.

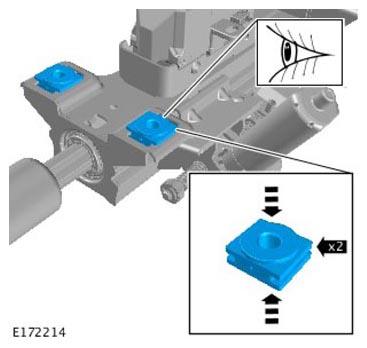

  7. CAUTION: Make sure the washers are installed correctly.
    G11308823Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the steering column.
    • Install and tighten the 4 bolts.

      Torque  : 25Nm

  9. CAUTION: Make sure that the steering column boot retaining clip is correctly located.

    Install the steering column boot and NVH material.

  10. Install the wiring harness.
  11. Install the carpet.
    • Install the clockspring and multifunction switch assembly.
    • Install and tighten the 2 bolts.

      Torque  : 1.9Nm

  13. Install the steering wheel.

    Refer to: STEERING WHEEL

  14. Install the instrument panel lower trim panel.

    Refer to the appropriate service information

  15. CAUTION:
    • Do not turn the steering wheel with the steering column lower shaft disconnected as damage to the clockspring may occur.
    • Make sure to clean the threads prior to installation.
    • Fixings must be started by hand to avoid damaging threads.
    NOTE:
    • Make sure the component is installed in the noted position.
    • The fixing must be fully tightened immediately following installation. Do not leave the fixing partially installed as adhesive may be activated.
    • Install the lower steering column shaft to the steering gear.
    • Install and tighten the new bolt.

      Renew Part: Lower steering column to steering gear bolts Quantity: 1  .

      Torque  : 30Nm

  16. Install the engine undershield.

    Refer to: ENGINE UNDERSHIELD - PROJECT 8

  17. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  18. If a new component has been installed, configure that component with the Jaguar Land Rover (JLR) approved diagnostic equipment.

    General Equipment: Jaguar Land Rover approved diagnostic equipment
