Electric Steering Column Lock (G2414182): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- To prevent accidental deployment, you must power down the Restraints Control Module (RCM). Wait at least 2 minutes after you disconnect the startup battery ground cable before you do any work on the Supplementary Restraint System (SRS). If you do not follow these instructions, it can cause injury or death.
- Do not connect any electrical test device or equipment to the Supplementary Restraint System (SRS) connectors.
- Always wear safety glasses when working on an airbag equipped vehicle and when handling an airbag. Failure to follow this instruction may result in personal injury.
CAUTION:
Make sure that the front wheels are in the straight ahead position.
NOTE:
- The Electric Steering Column Lock (ESCL) can be replaced on vehicles with manual adjusted steering column only.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- To avoid accidental airbag deployment, wait at least 2 minutes after you disconnect the startup battery ground cable.
- Remove the steering column.
Refer to: STEERING COLUMN

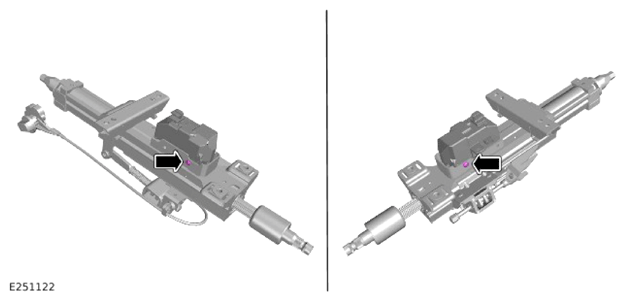

Use a suitable tool to remove and discard the 2 security bolts.

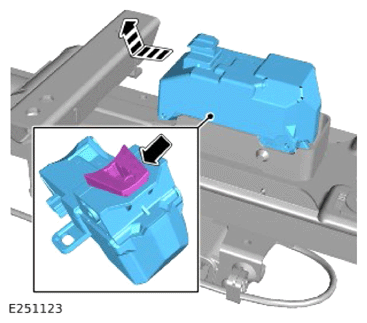

Remove the Electric Steering Column Lock (ESCL).
