Steering Wheel
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

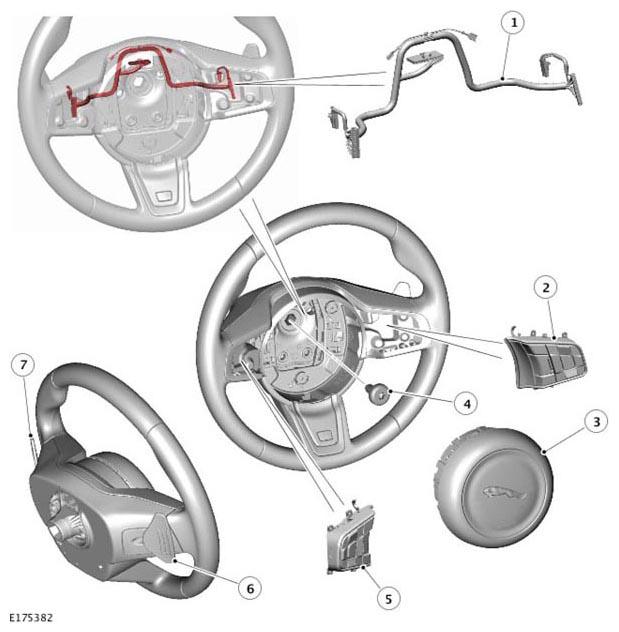

| ITEM | DESCRIPTION |
|---|---|
| 1 | Steering wheel harness |
| 2 | Steering wheel switchpack - right |
| 3 | Driver airbag |
| 4 | Steering wheel securing bolt |
| 5 | Steering wheel switchpack - left |
| 6 | Downshift paddle switch |
| 7 | Upshift paddle switch |
The steering wheel is located on the input shaft of the steering column and secured with a Torx bolt. The driver airbag is located in the center of the steering wheel. Two steering wheel switchpacks are located each side of the driver airbag. A wiring harness link connects the steering wheel components to the Clockspring (CLKSPG). On automatic transmission vehicles, upshift and downshift paddle switches are attached to the steering wheel.
