Heated Steering Wheel (HSW)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

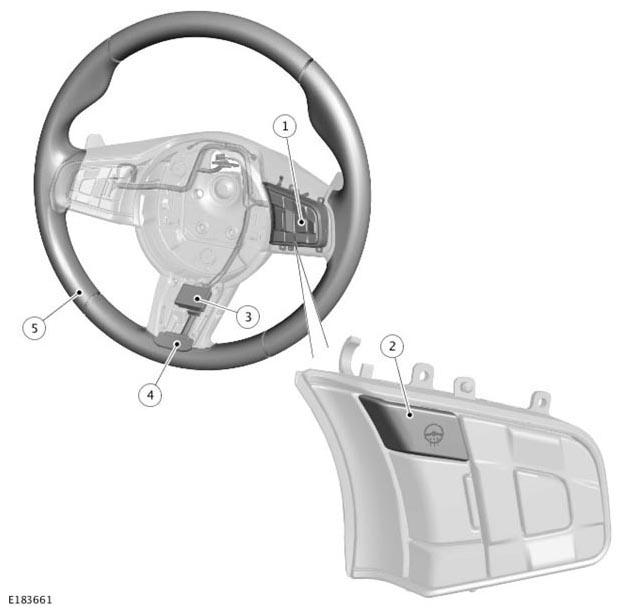

| ITEM | DESCRIPTION |
|---|---|
| 1 | Steering wheel switchpack - right |
| 2 | Steering Wheel Heater (SWH) switch |
| 3 | Steering Wheel Heater (SWH) control module |
| 4 | Steering Wheel Heater (SWH) temperature sensor |
| 5 | Heater mat |
The Heated Steering Wheel (HSW) consists of a heater mat and a Negative Temperature Coefficient (NTC) temperature sensor installed around the rim of the steering wheel under the trim. The heater mat and temperature sensor are connected to a steering wheel heater control module (SWH) integrated in the wiring harness link under the driver airbag.
A heater symbol in the switch is illuminated amber when the steering wheel heater is on. When the HSW is switched off, the symbol is either not illuminated or, if the exterior lighting is on, illuminated white.
