Steering Column Adjustment
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

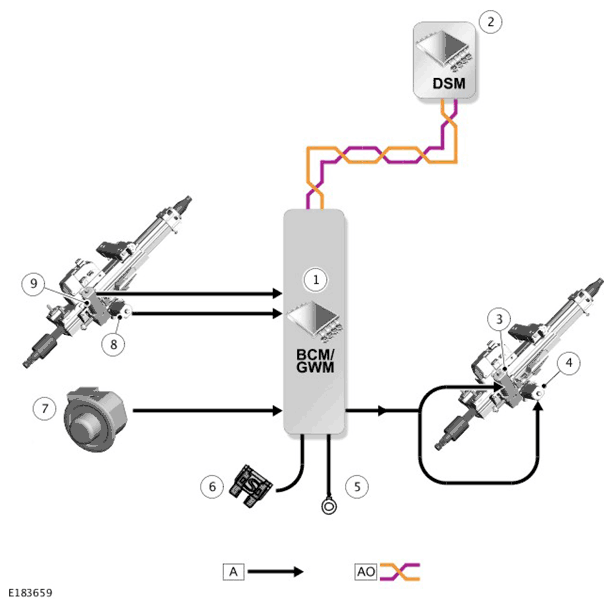

A = HARDWIRED; AO= MEDIUM SPEED (MS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Driver Seat Module (DSM) |
| 3 | Tilt adjustment motor |
| 4 | Reach adjustment motor |
| 5 | Ground |
| 6 | Power supply |
| 7 | Steering column adjustment switch |
| 8 | Reach adjustment sensor |
| 9 | Tilt adjustment sensor |
