Windshield - Project 8 (G2248422): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

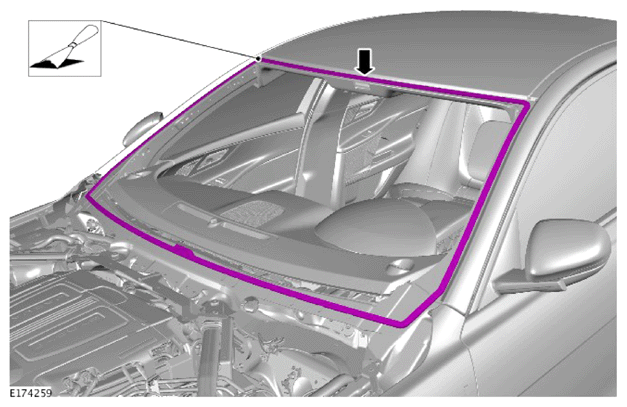

  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G14011184Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove all residual sealant material from the body.

  2. CAUTION: Touching the adhesive surface will impair re-bonding.

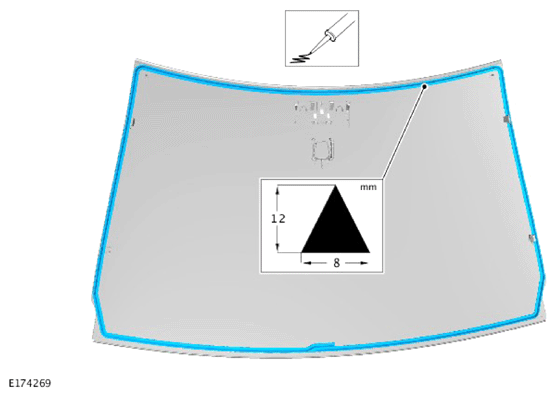

    G14011185Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Prepare the windshield, windshield flange and trimmed Polyurethane (PU) adhesive in accordance with the instructions included with the Jaguar Land Rover PU adhesive service kit.

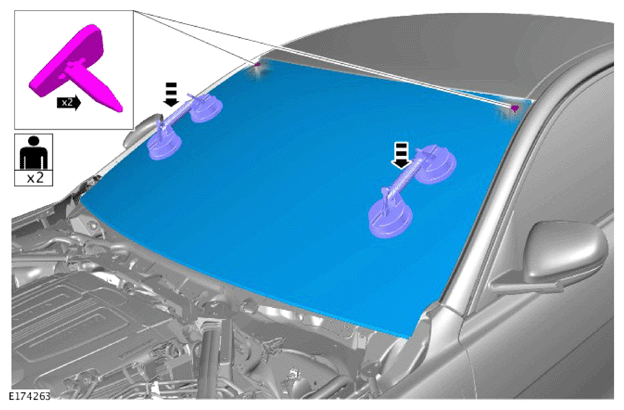

  3. CAUTION: Make sure that equal pressure is applied to the full length of the component.
    NOTE: This step requires the aid of another technician.
    G14011186Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    With assistance, install the windshield.

    General Equipment: Windscreen removal/installation equipment

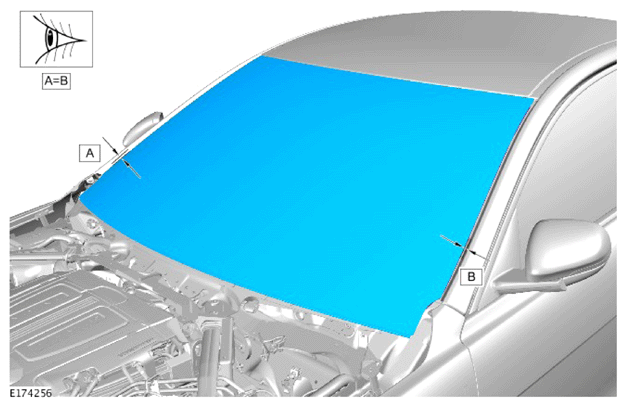

  4. NOTE: Make sure that the gap around the component is even.
    G14011187Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Align the windshield.

  5. CAUTION: Make sure that no excess sealant residue is evident.

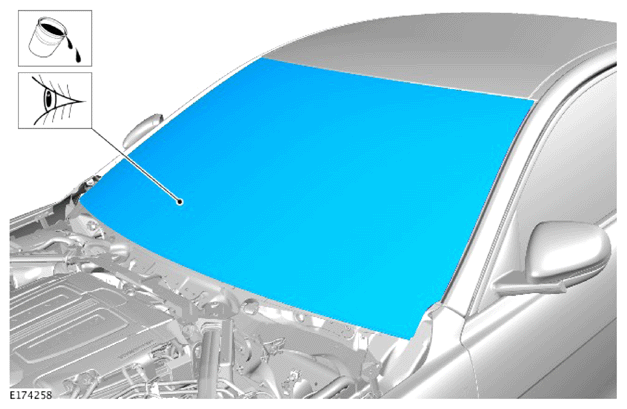

    G14011188Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Spray water around the windshield, mark any area that leaks. Dry the windshield and sealant before applying additional sealant.

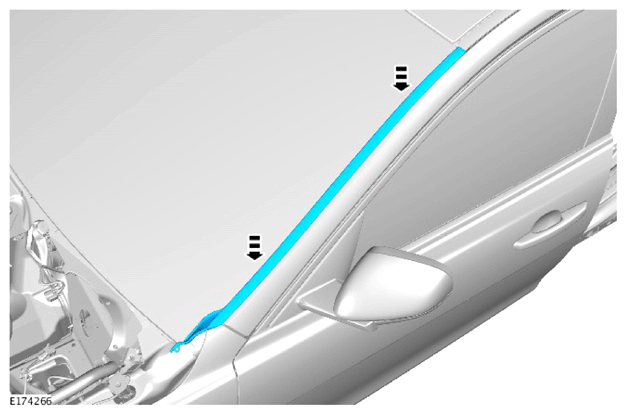

  6. NOTE: Repeat the step for the other side.
    G14011189Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the A-pillar moulding.

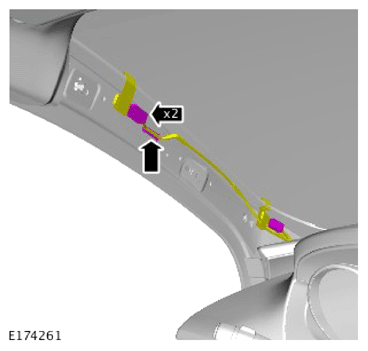

  7. G14011190Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the 2 electrical connectors.

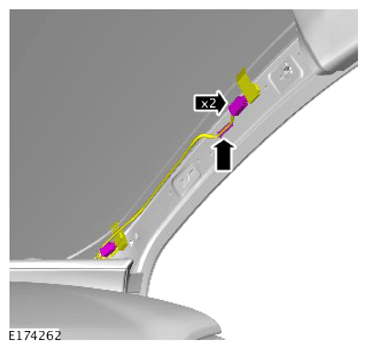

  8. G14011191Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the 2 electrical connectors.

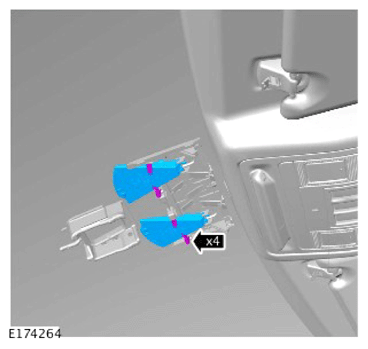

  9. G14011192Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the Image Progressing Control Module (IPCM) light traps.

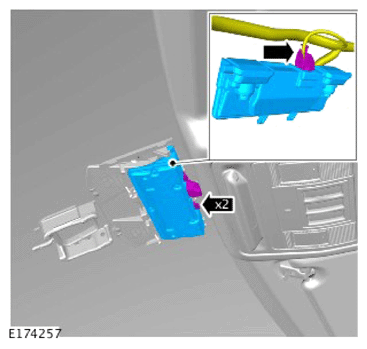

  10. NOTE: The Image Processing Control Module (IPCM) must be calibrated using the Jaguar Land Rover approved diagnostic equipment after the procedure.
    G14011193Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the IPCM.
    • Connect the electrical connector.

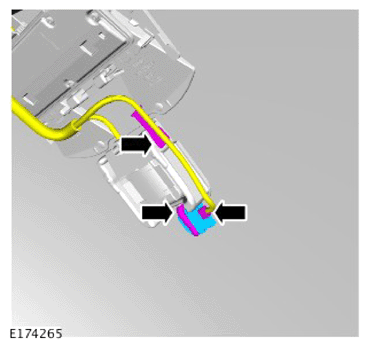

  11. G14011194Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the humidity sensor.
    • Secure the wiring harness clip.
    • Connect the electrical connector.
  12. Install the rain/light sensor.

    Refer to: RAIN SENSOR

  13. NOTE: Repeat the procedure for the other side.

    Install the A-pillar trim panel.

    Refer to: A-PILLAR TRIM PANEL

  14. Install the cowl panel.

    Refer to: COWL PANEL
