Rear Window - Project 8 (G2250540): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Lay the window on felt covered supports. Do not stand on edge as this can cause chips which subsequently develop into cracks.
Make sure to protect the paintwork.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the parcel shelf.
Refer to: PARCEL SHELF
Remove the High Mounted Stop Lamp (HMSL).
Refer to: HIGH MOUNTED STOPLAMP
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

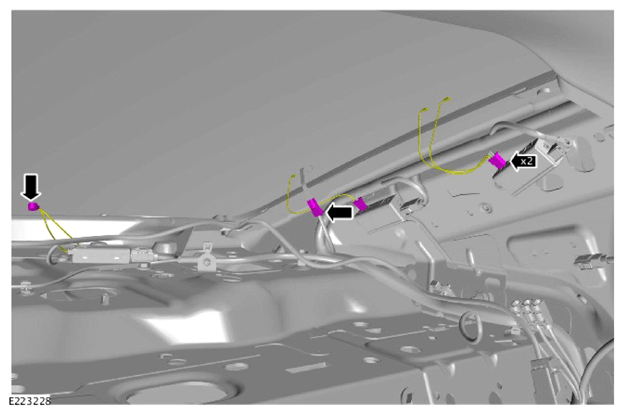

Disconnect the 4 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

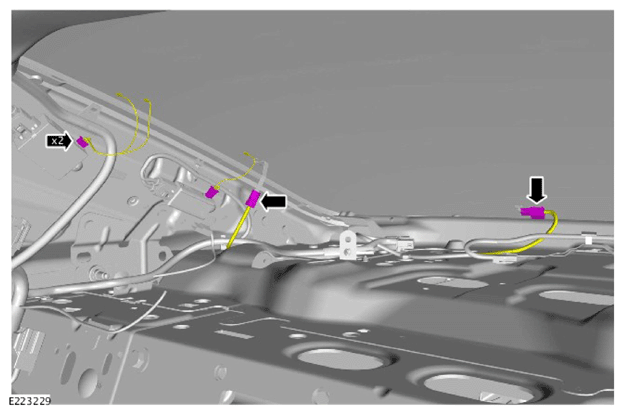

Disconnect the 4 electrical connectors.
CAUTION:
- Protect the surrounding components.
- Protect the surrounding paintwork to avoid damage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

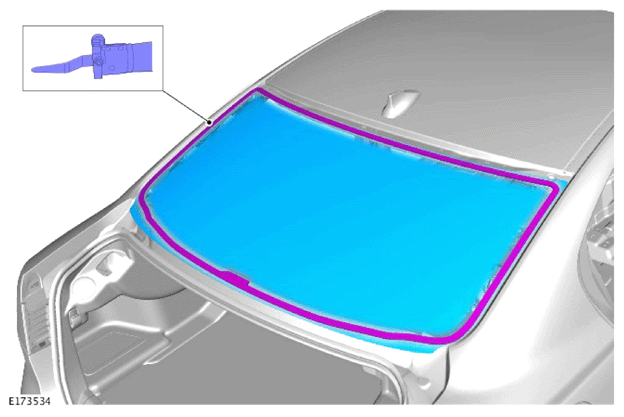

Carefully cut through the sealant using a glazing knife.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

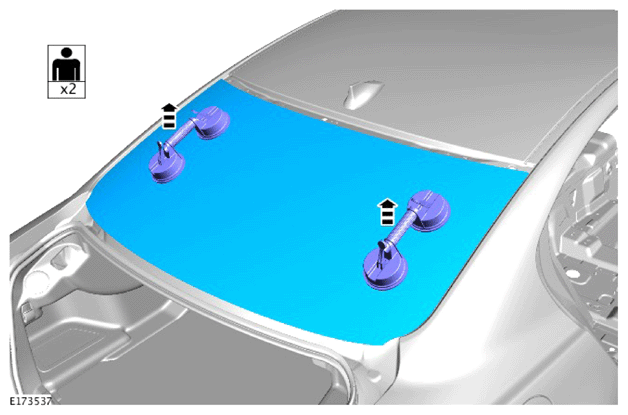

With assistance, remove the rear window.

General Equipment: Windscreen removal/installation equipment
