Rear Window - Project 8 (G2250540): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

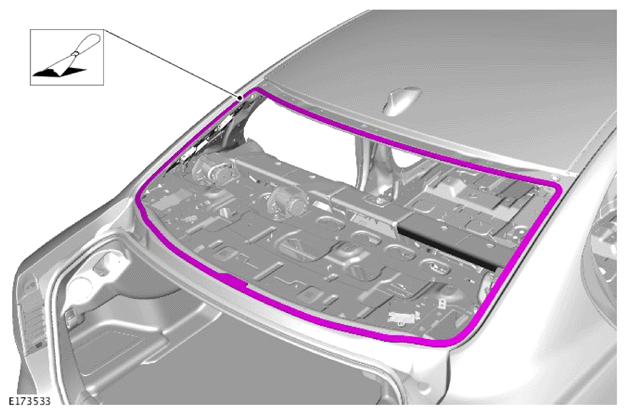

Remove all residual sealant material from the body.
CAUTION: Touching the adhesive surface will impair re-bonding.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

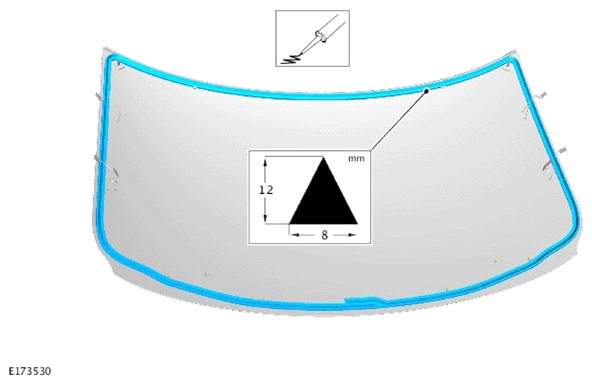

Prepare the rear window, the rear window flange and trimmed PU adhesive in accordance with the instructions included with the Jaguar Land Rover PU adhesive service kit.
CAUTION: Make sure that equal pressure is applied to the full length of the component.

NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

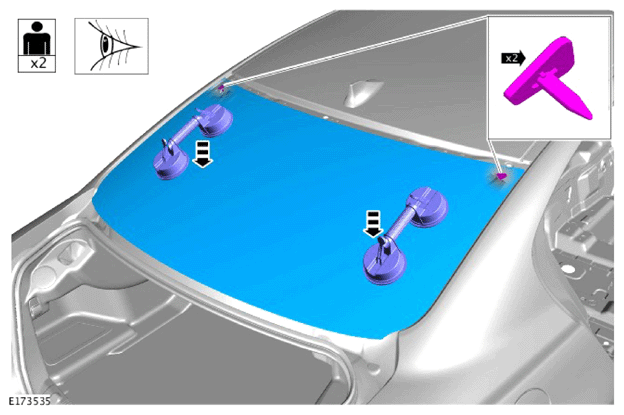

With assistance, install the rear window.

General Equipment: Windscreen removal/installation equipment
NOTE: Make sure that the gap around the component is even.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

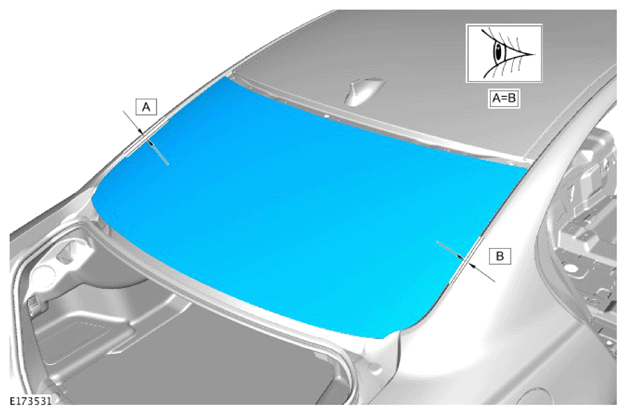

Align the rear window.
Install the High Mounted Stop Lamp (HMSL).
Refer to: HIGH MOUNTED STOPLAMP
CAUTION: Make sure that no excess sealant residue is evident.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

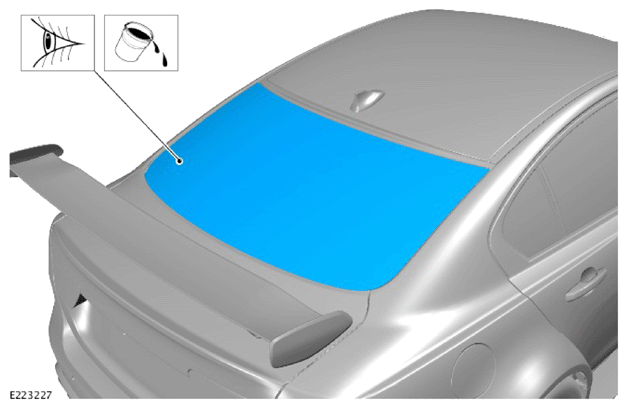

Spray water around the rear window, mark any area that leaks. Dry the rear window and sealant before applying additional sealant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

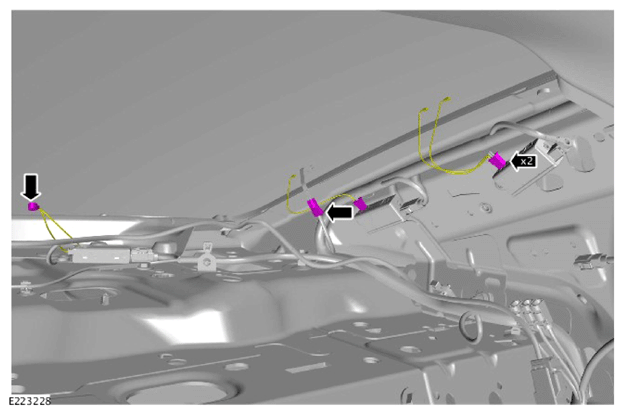

Connect the 4 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

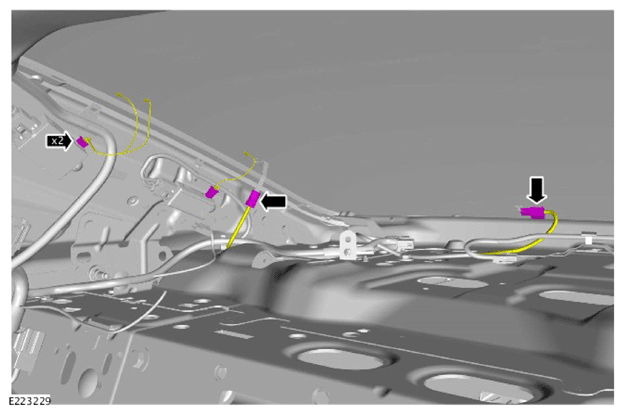

Connect the 4 electrical connectors.
Install the parcel shelf.
Refer to: PARCEL SHELF
