Rear Window (G1822171): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Always protect paintwork and glass when removing exterior components.
- Always protect the interior components when removing body glass.
- Lay the glass on felt covered supports. Do not stand on edge as this can cause chips which subsequently develop into cracks.
- Refer to: PARCEL SHELF
- Refer to: HIGH MOUNTED STOPLAMP
-
CAUTION:
- Protect the surrounding components.
- Protect the surrounding paintwork to avoid damage.
-

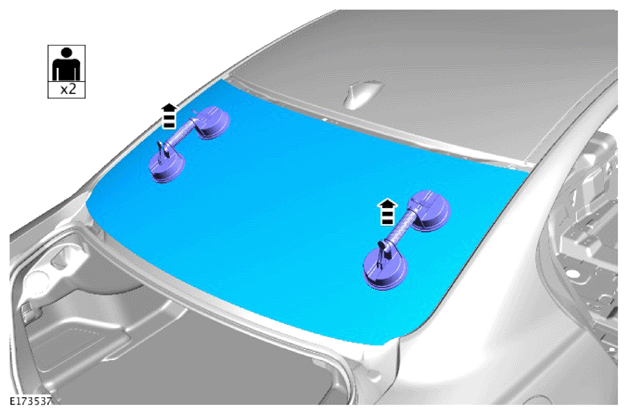

WARNING: This step requires the aid of another technician.
