Rear Window (G1822171): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

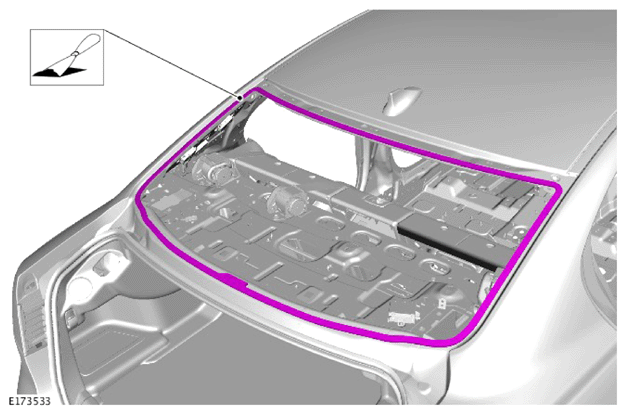

  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G14011100Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

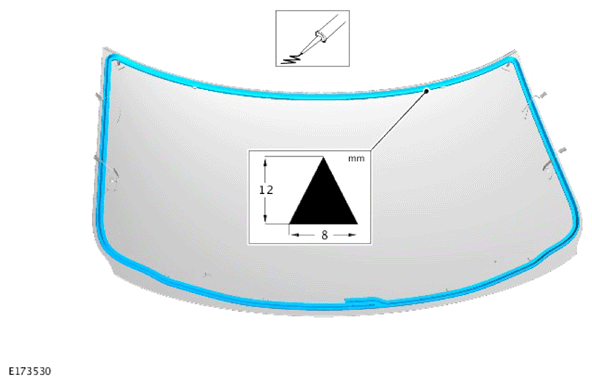

  2. CAUTION: Touching the adhesive surface will impair re-bonding.
    NOTE: Make sure that a Hi-modulus sealer (for example, Wurth Ultimate adhesive) is used when bonding the component to the vehicle.
    G14011101Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

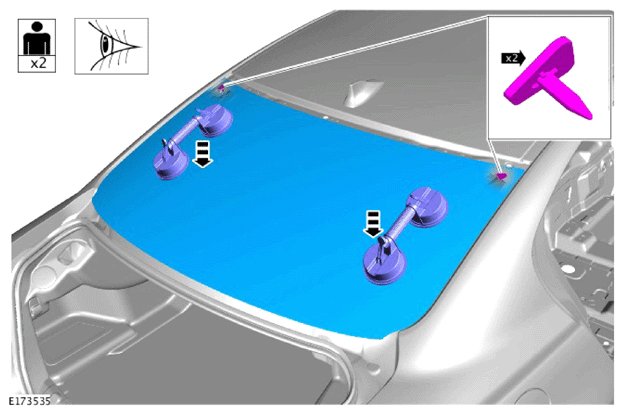

  3. CAUTION: Make sure that equal pressure is applied to the full length of the component.
    NOTE: This step requires the aid of another technician.
    G14011102Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

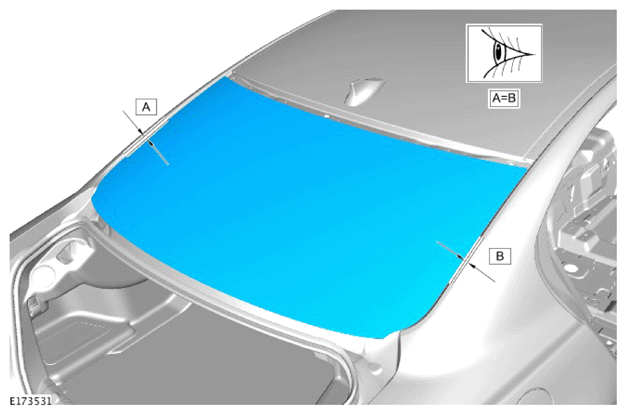

  4. NOTE: Make sure that the gap around the component is even.
    G14011103Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

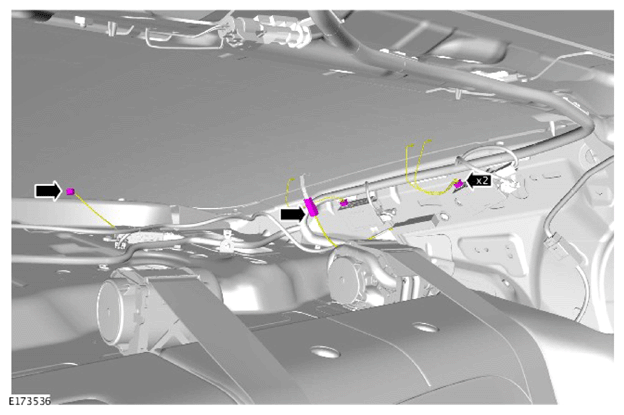

  5. G14011104Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

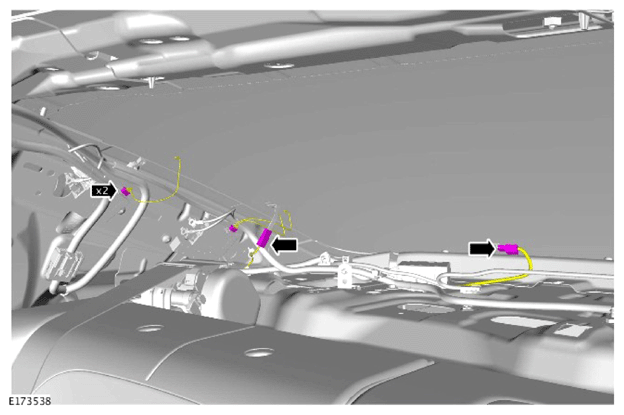

  6. G14011105Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. Refer to: HIGH MOUNTED STOPLAMP

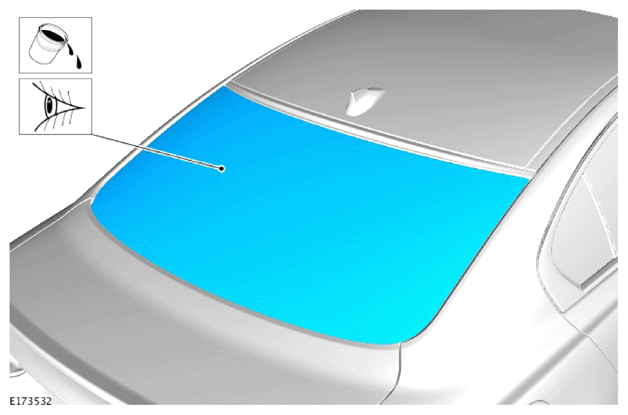

  8. CAUTION:
    • Make sure that no excess sealant residue is evident.
    • Make sure that the sealant is allowed to dry in accordance with the instructions included with the PU adhesive kit.
    G14011106Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • If water is used as a means for the leak check, then allow sealant to dry before testing.
    • Spray water around the windshield glass, mark any area that leaks. Dry the windshield glass and sealant before applying additional sealant.
  9. Refer to: PARCEL SHELF
