Rear Door Window Control Switch - Project 8 (G2249573): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use a suitable plastic trim tool to release the component.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

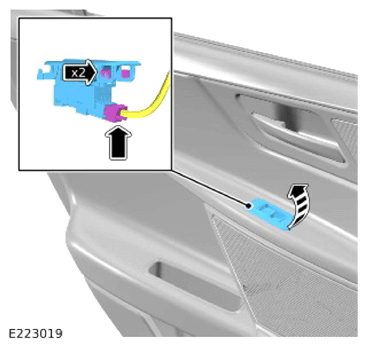

- Release the window control switch.
- Disconnect the electrical connector.
- Remove the window control switch.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

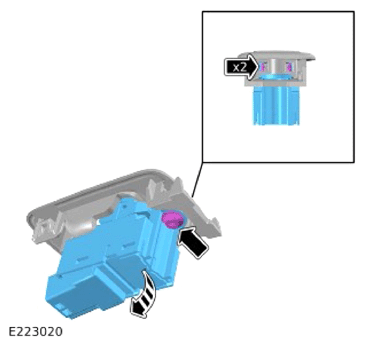

- Remove the screw.
- Release the 2 clips.
- Remove the window control switch from the bracket.
