Rear Door Fixed Window - Project 8 (G2248423): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

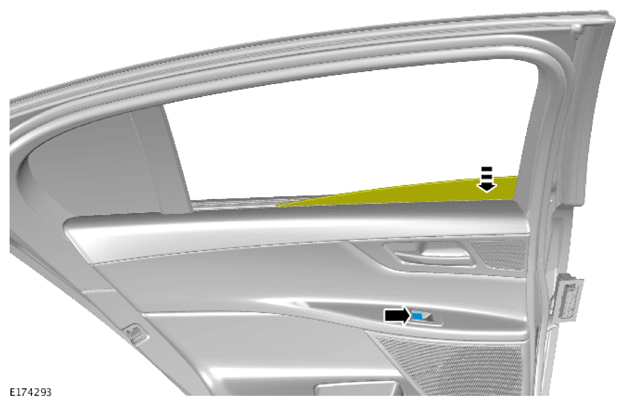

Lower the rear door window.
Remove the rear door trim panel.
Refer to: REAR DOOR TRIM PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

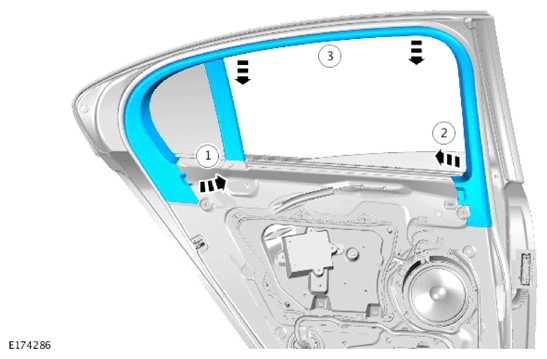

Remove the rear door frame trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

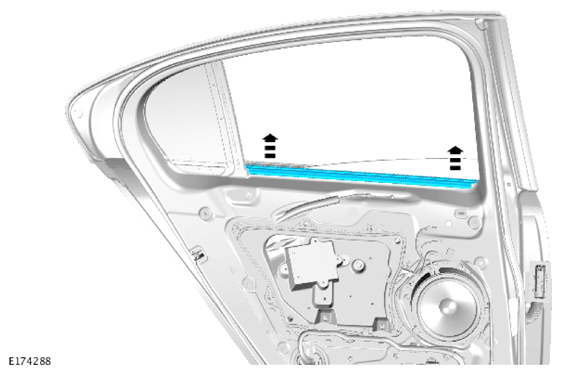

Remove the rear door inner weatherstrip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

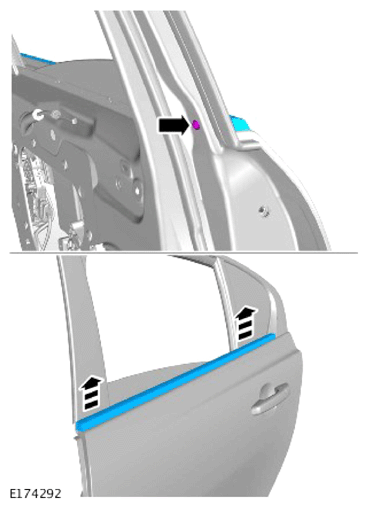

- Remove the screw.
- Remove the rear door outer weatherstrip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

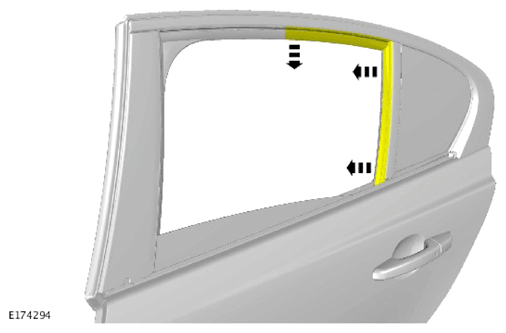

Release the window runner seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

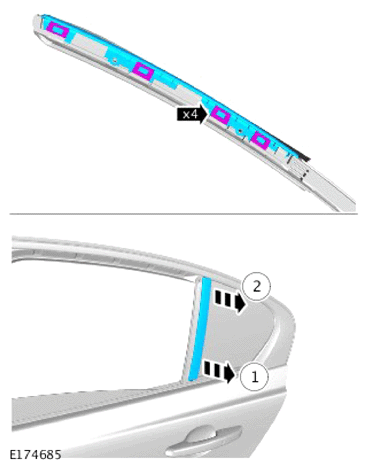

Remove the rear door fixed window finisher.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

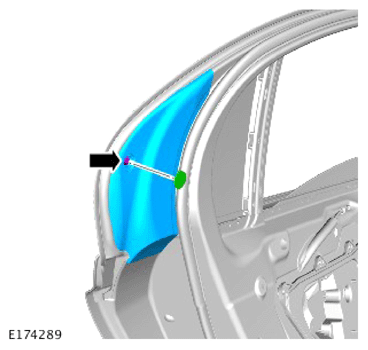

- Remove the access cover.
- Remove the screw.
- Remove the trim panel.
CAUTION: Note the installed position of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

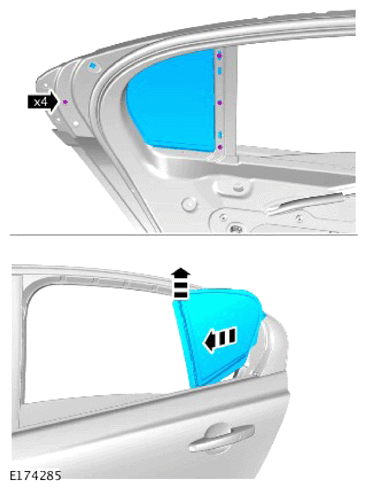

- Remove the 4 screws.
- Remove the rear door fixed window.
