Rear Door Fixed Window (G1829872): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use a suitable trim tool.
NOTE: Removal steps in this procedure may contain installation details.

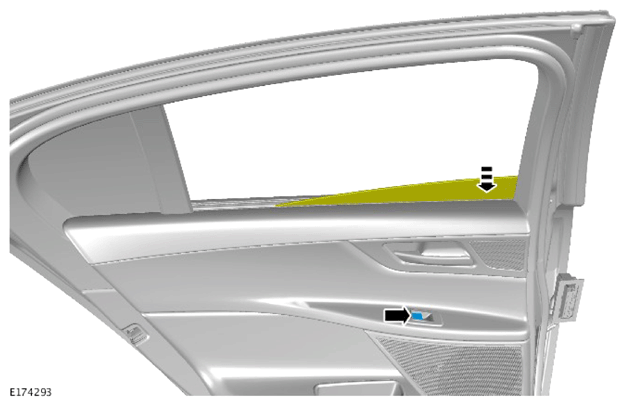

  1. G14011068Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lower the rear door window glass.

  2. Remove the rear door trim panel.

    Refer to: REAR DOOR TRIM PANEL

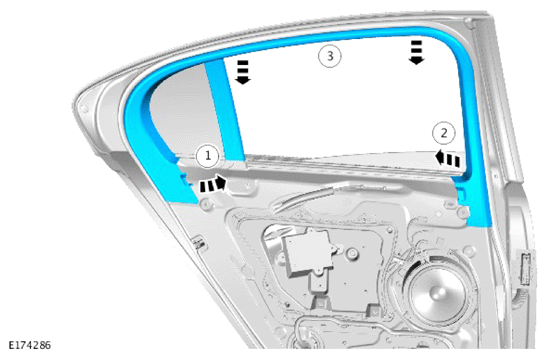

  3. G14011069Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

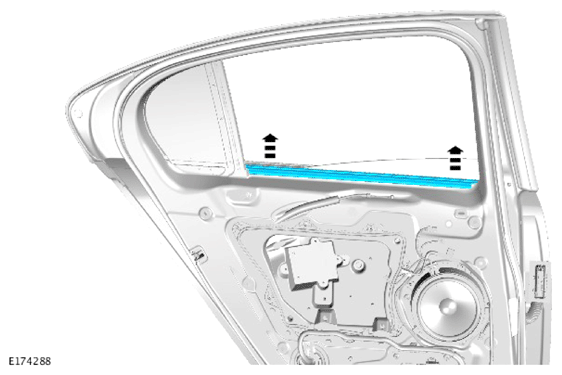

  4. G14011070Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

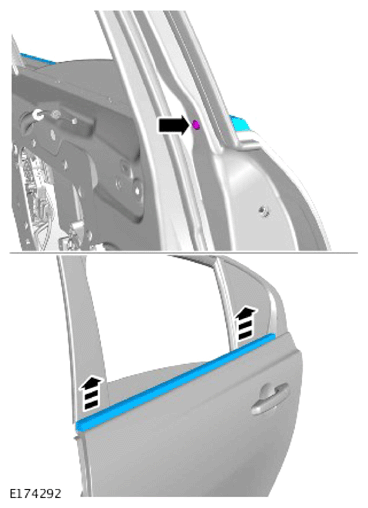

  5. G14011071Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

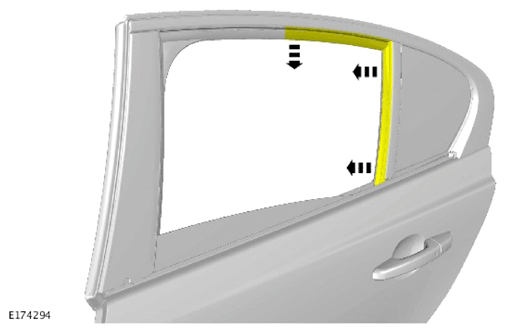

  6. G14011072Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

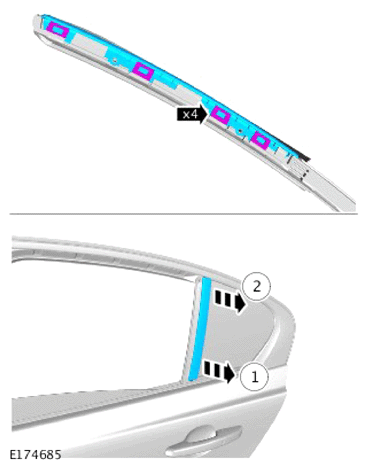

  7. G14011073Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

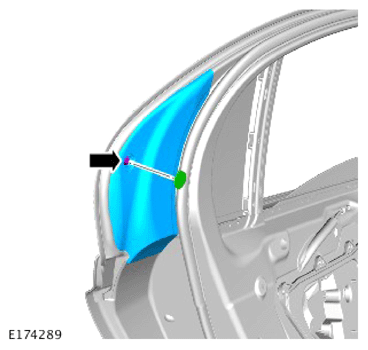

  8. G14011074Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  9. CAUTION: Note the installed position of the component prior to removal.

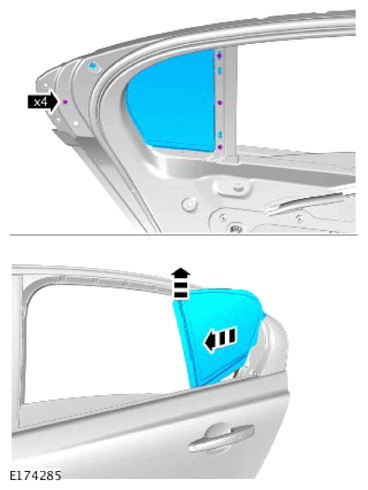

    G14011075Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
