Front Door Window Control Switch (G1829873): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use a suitable trim tool.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the front door trim panel.

    Refer to: FRONT DOOR TRIM PANEL

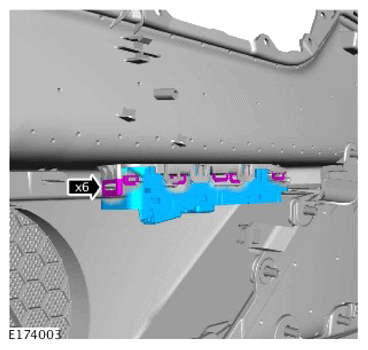

  2. G14011052Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 6 clips.
    • Remove the driver door switchpack.
