Front Door Window (G1829870): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Lay the glass on felt covered supports. Do not stand on edge as this can cause chips which subsequently develop into cracks.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

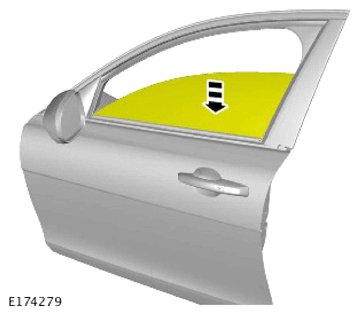

Lower the front door window.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

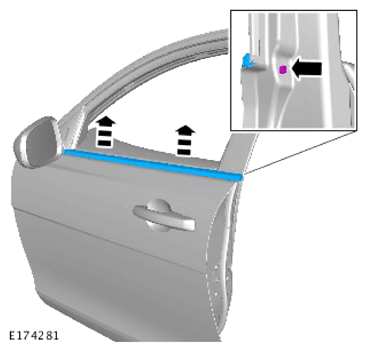

- Remove the screw.
- Remove the front door outer weatherstrip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

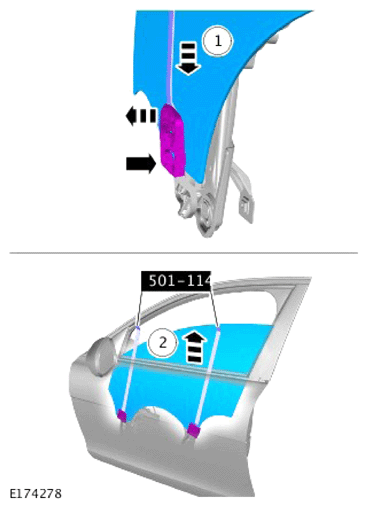

Release the front door window.

Special Tool(s): 501-114
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

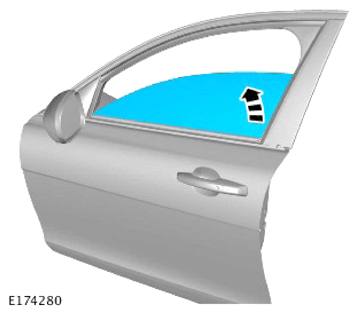

Remove the front door window.
