Pinpoint Test D: Delamination Tests

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. D1: DELAMINATION TEST 1

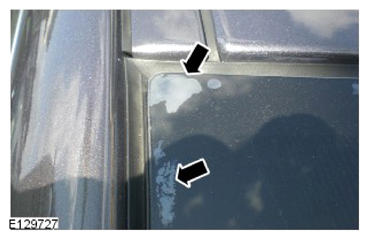

    1. Visually assess the windshield for delamination.
    G14011030Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Have the glass laminates separated?

    Yes  : Install a new windshield.

    No  : No further action.
