Water Drainage System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
If a vehicle develops water leaks, then areas into which water is routed or drained should be checked first.

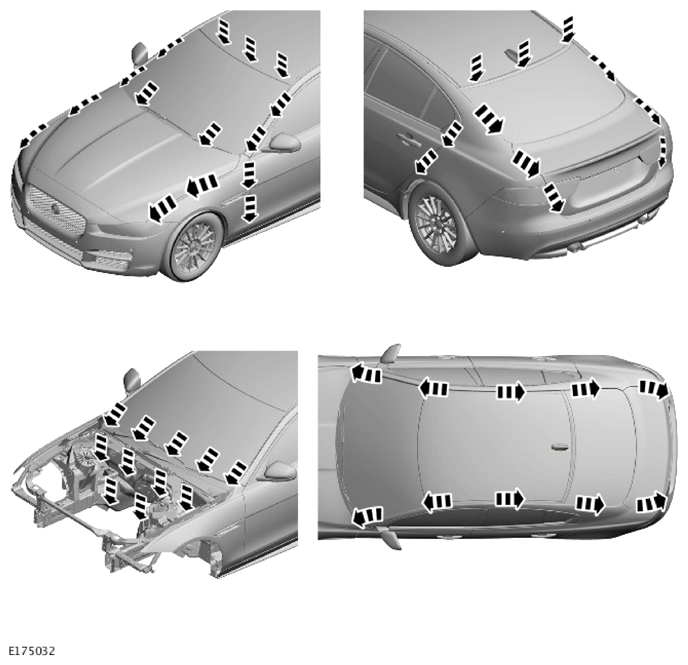

Water drainage system (illustration for reference only)
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Water drainage, front |
| 2 |
Water drainage, side and rear |
| 3 |
Engine compartment drainage |
| 4 |
Roof drainage |
