Window Regulator

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

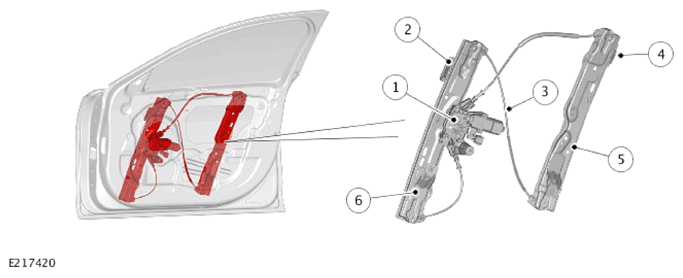

Front Window Regulator

NOTE: Right side shown, left side is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	Motor assembly
2	Front rail carrier
3	Cable
4	Rear rail carrier
5	Rear rail
6	Front rail

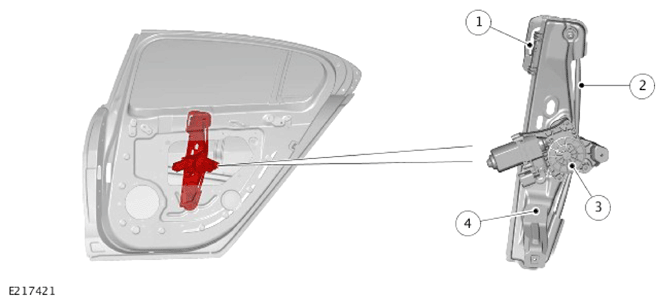

Rear Window Regulator

NOTE: Right side shown, left side is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	Rail carrier
2	Cable
3	Motor assembly
4	Rail

Front and rear door window regulator assemblies comprise of front and rear guide rails, cables and a motor assemblies. The front door window is located in 2 rail carriers and the rear door window is located in 1 rail carrier. The carriers are located to tracks on the guide rails.

Each rail carrier is attached to the cable, which is wrapped around a drum driven by the motor assembly. When the motor is operated the drum pulls the cable in the required direction to raise or lower the rail carrier(s).

Each door window regulator motor assembly is connected to the related door module, which provides the power outputs to drive the motor. The door module receives rotational speed inputs from 2 sensors located in the door window regulator motor.
