Integrated Control Panel

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

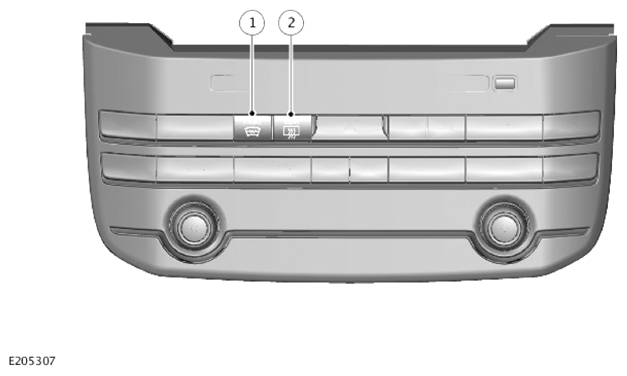

G14011010Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Heated windshield switch (if equipped)
2 Heated rear window switch

The ICP  is installed in the center of the instrument panel and contains push switches and rotary switches for operation of the climate control system. Each push switch contains an amber status LED (Light Emitting Diode).

The heated front windshield and heated rear window switches are located in the ICP  .
