Control Diagram - 3 Of 3 - Heated Windshield And Heated Rear Window

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = HARDWIRED: AV = HS CAN COMFORT SYSTEMS BUS.

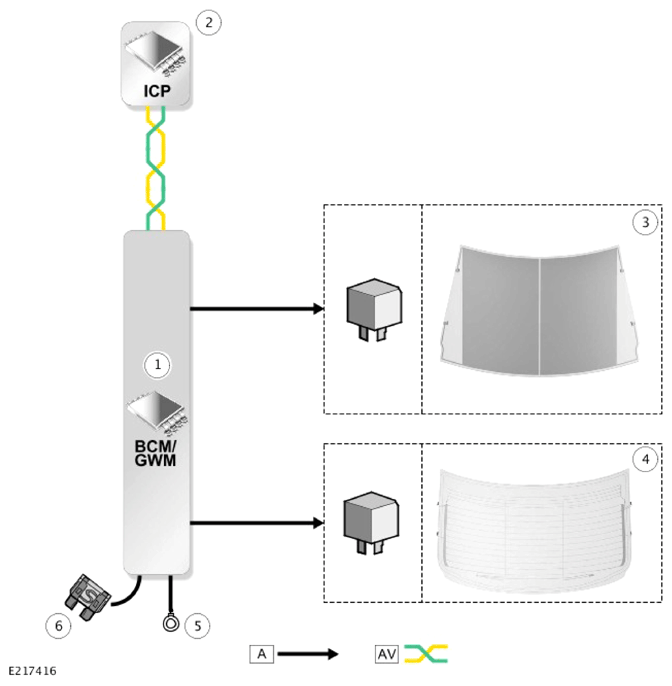

ITEM	DESCRIPTION
1	BCM /GWM
2	ICP
3	Windshield heater element
4	Rear window heater element
5	Ground
6	Power supply
