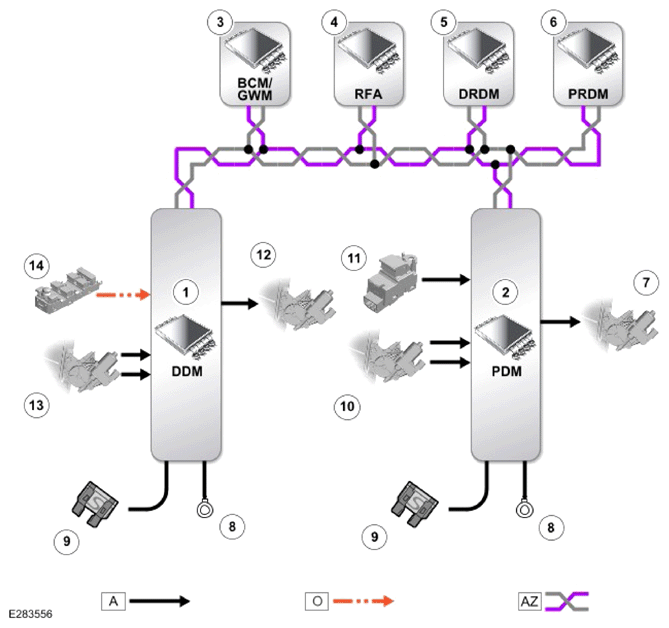

Control Diagram - 1 Of 3 - Front Door Window
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: O = LIN : AZ = HS CAN BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | DDM |
| 2 | PDM |
| 3 | BCM /GWM |
| 4 | RFA |
| 5 | DRDM |
| 6 | PRDM |
| 7 | Front passenger door window regulator motor |
| 8 | Ground |
| 9 | Power supply |
| 10 | Front passenger door window regulator motor position sensor (quantity 2) |
| 11 | Front left passenger door switch |
| 12 | Driver driver door window regulator motor |
| 13 | Driver door window regulator motor position sensor (quantity 2) |
| 14 | Driver door switchpack |
