Component Location - 3 Of 4 - Door Window

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

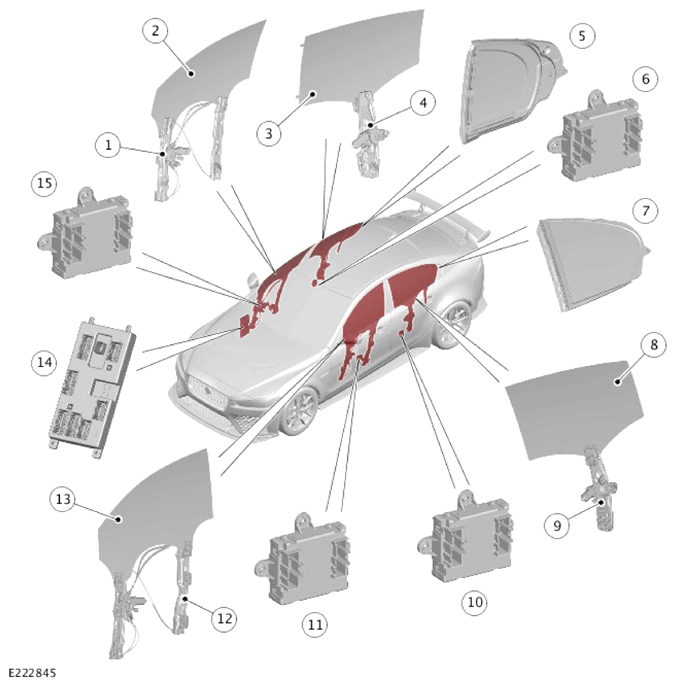

G14011003Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Front right door window regulator
2 Front right door window
3 Rear right door window
4 Rear right door window regulator
5 Rear right quarter window
6 Passenger Rear Door Module (PRDM)
7 Rear left quarter window
8 Rear left door window
9 Rear left door window regulator
10 Driver Rear Door Module (DRDM)
11 Driver Front Door Module (DDM)
12 Front left door window regulator
13 Front left door window
14 Body Control Module (BCM)/Gateway Module A (GWM)
15 Passenger Front Door Module (PDM)
