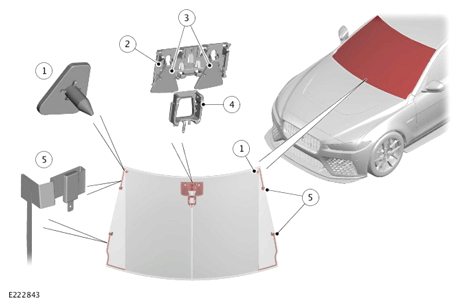

Component Location - 1 Of 4 - Windshield
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Locator pin |
| 2 |
Image Processing Module 'A' (IPMA) bracket |
| 3 |
Camera light traps/blanking plates |
| 4 |
Rain/light sensor/rear view mirror mounting bracket |
| 5 |
Electrical connector - Windshield heater element (if equipped) |
